10" wall housing, 6U, deep black (RAL9005), 312 x 300mm, fully assembled, Good Connections®

To order this product, please log in here.

Product number: GC-R0102

EAN: 4014619724864

Length: 0.3 m

Width: 0.31 m

Height: 0.35 m

Manufacturer article number: GC-R0102

Availability: 10-19 available

Product information "10" wall housing, 6U, deep black (RAL9005), 312 x 300mm, fully assembled, Good Connections®"

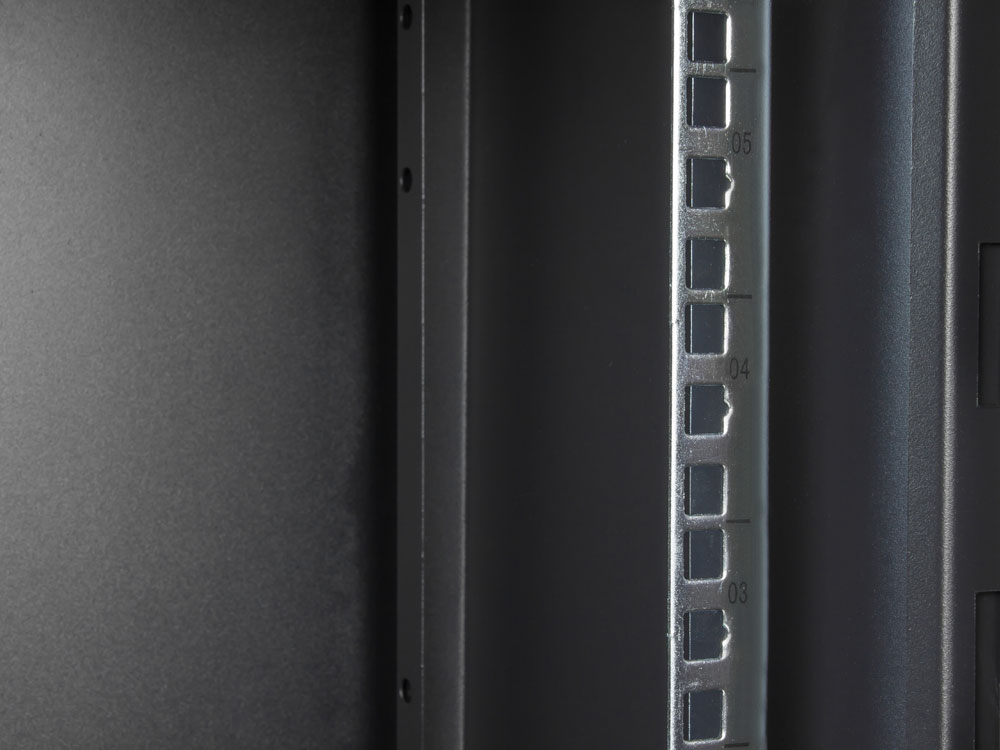

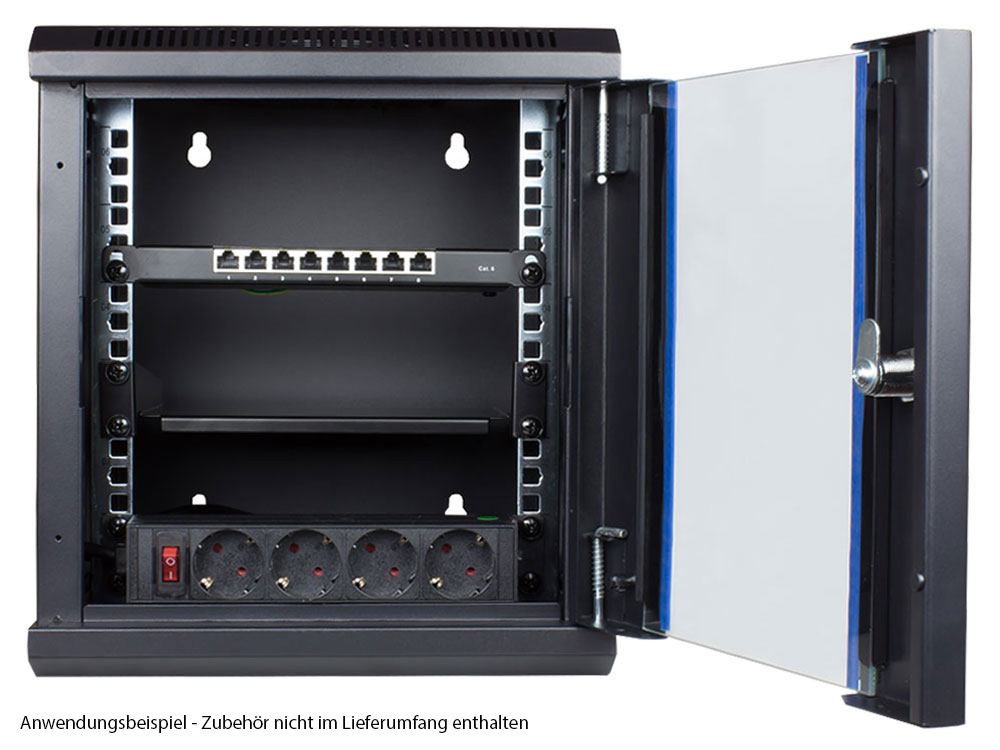

The 10" network wall housing by Good Connections® is suitable ideally for any common usage in the IT or telecommunications sector, because of its quick installation and stable steel construction. Due to its shallow depth, a space-saving installation is a given. The wall housing, which has already been assembled, consits of a central part including a lockable glazed door and two removable sidewalls. There’s a broad spectrum of accessories available for this 10" wall housing. Details: - Lockable glazed security door and lockable side walls for added safety - Door hinge right/left tool-free exchangeable (factory-made on the right) - Removable side walls for better access to the build in components - Ventilation slots for active/ passive ventilation - Build in area for a 120 mm cooling fan on the housing ceiling (cooling fan not included in scope of delivery, manufacturer’s number: GC-N0102) - Depth adjustable 10" profile rail - Max. installation depth: 220 mm (distance profile rale to back wall) - Marked benchmarked on the profile rails facilitate the installation of the components - Cable feed on the upper side is equipped with a brush strip to prevent ingress of contamination, the cable feed on the bottom is lockable via a covering - Two earthing points on the bottom and the front door - Wall housing is being delivered fully assembled Technical specifications: - Material: 1,0-1,2 mm robust, powder-coated steel sheet with a high capacity - Protection class: IP20 - Scope of delivery: Assembled wall housing incl. two keys and 20 fastening sets (cage nut, screw, washer) - Color: Deep black (RAL9005) - Benchmarks: 6U in the 10" level - Measurements (WxDxH): 312 x 300 x 350 mm
