10" wall mount cabinet, 12U, light grey (RAL7035), 312 x 300mm, fully assembled, Good Connections®
Product number:
GC-R0111
EAN:
4014619553112
Length:
0.3 m
Width:
0.31 m
Height:
0.62 m
Manufacturer article number:
GC-R0111
Availability:
5-9 available
Description
Product information "10" wall mount cabinet, 12U, light grey (RAL7035), 312 x 300mm, fully assembled, Good Connections®"

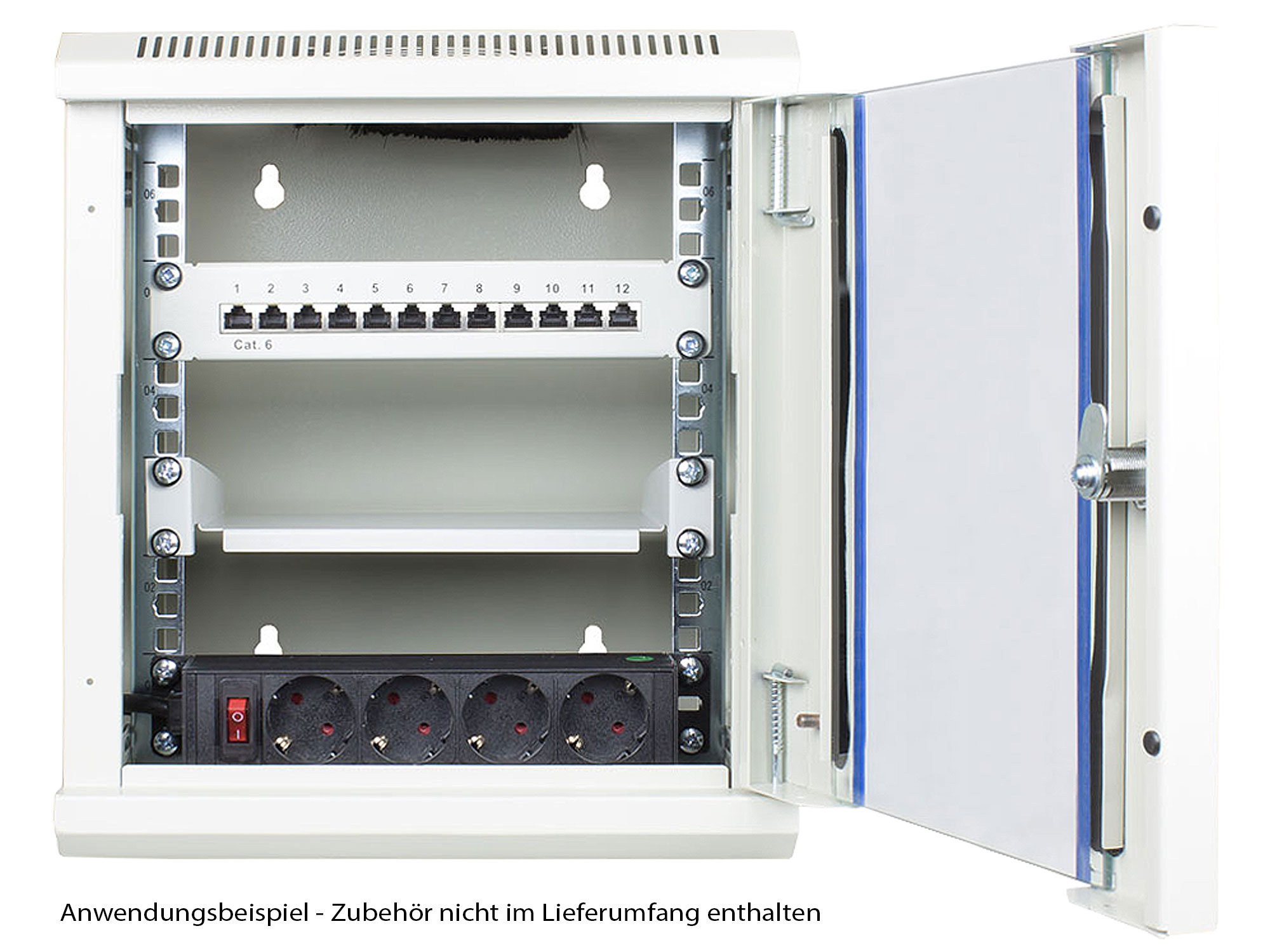

The 10" network wall cabinet from Good Connections® is ideal for all common applications in the EDP and telecommunications sector thanks to quick assembly and stable steel construction. The small depth of 300 mm enables a space-saving installation. The wall-mounted cabinet, which is supplied pre-assembled, consists of a central section with a lockable viewing door and two lockable side sections. Optimal access behind the installed components is provided by the removable side panels. A wide range of accessories is available for the 10" wall-mounted cabinet.
Details:
- Lockable safety glass door and lockable side panels for added security
- Right/left door hinges can be changed without tools (factory hinged right)
- Removable side panels for better access to the installed components
- Ventilation slots for active and passive ventilation
- Preparation for 120 mm fan at the case top (fan not included, manufacturer no.: GC-N0102)
- Depth variable 10" profile rails
- Max. Installation depth: 220 mm (distance between profile rail and rear panel)

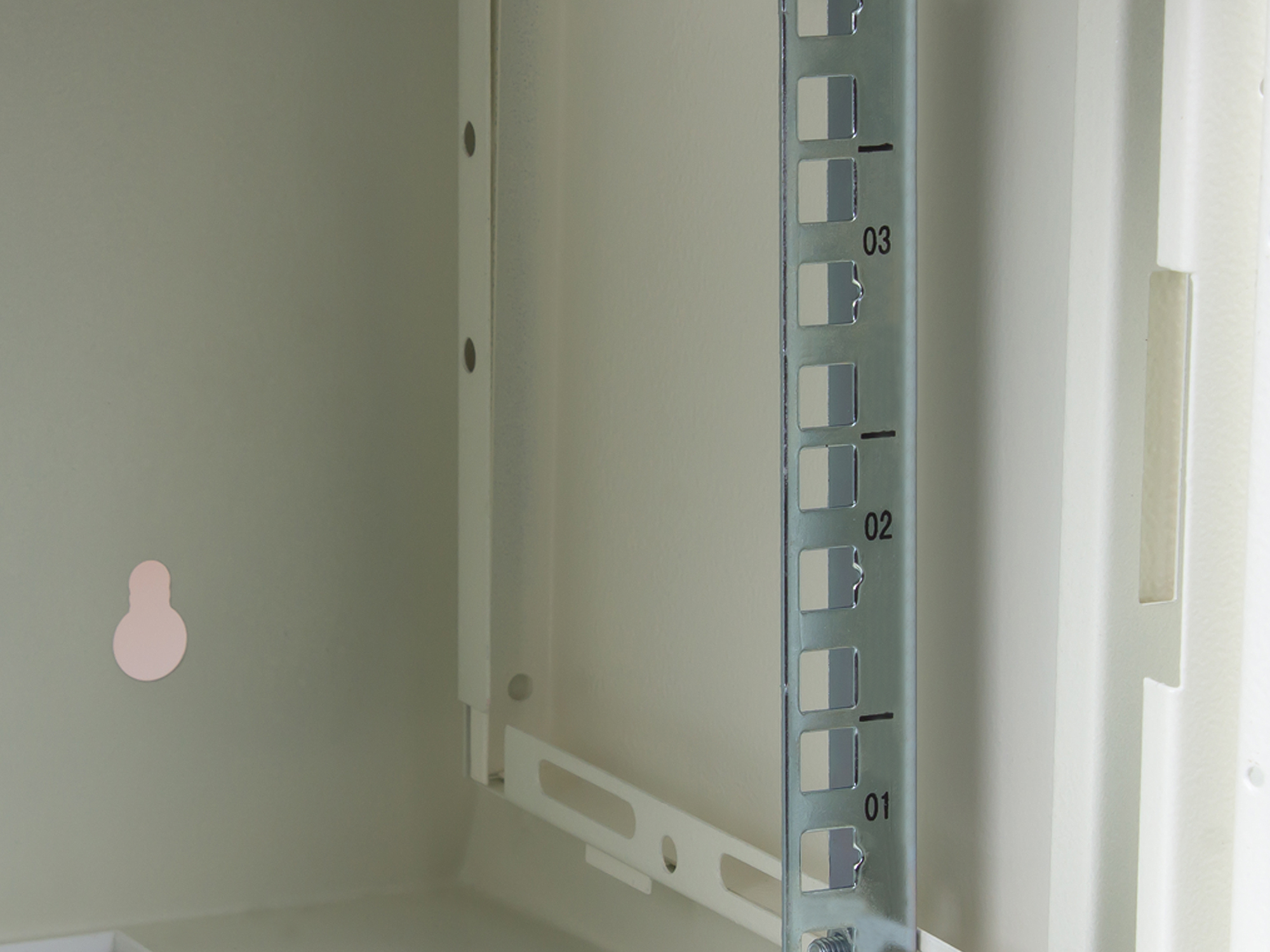

- Drawn height markings on the profile rails facilitate the installation of the components
- The cable entry on the top side is equipped with a brush strip to protect against dirt ingress, the lower cable entry can be closed by a cover
- Two grounding points on the bottom and front door
- Wall-mounted cabinet is supplied fully pre-assembled
Technical specification:
- Material: 1.0-1.2 mm robust, powder-coated steel sheet with high load capacity
- Protection class: IP20
- Scope of delivery: pre-assembled wall-mounted cabinet including two keys and 20 fixing sets (cage nut, screw, washer).
- Color: Light grey (RAL7035)
- Height units: 12 U in the 10" level
- Dimensions (WxDxH): 312 x 300 x 615 mm
