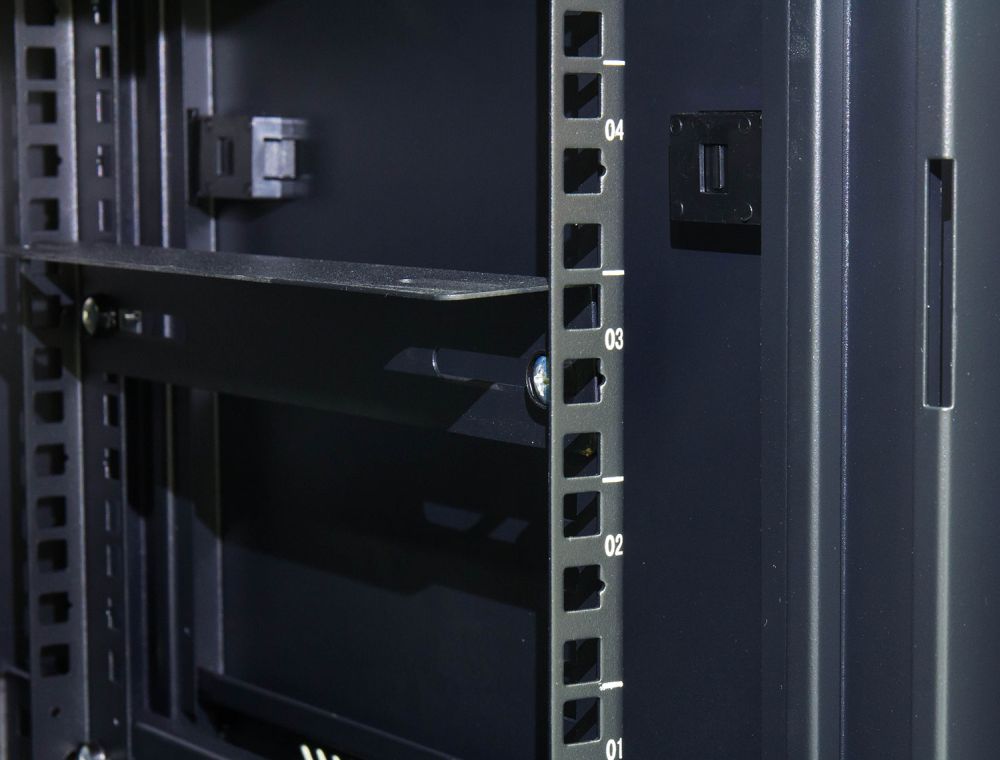

19" Wall housing, 4U, deep black (RAL9005), 600x450 mm, fully assembled, Good Connections®

To order this product, please log in here.

Product number: GC-R0005

EAN: 4014619816415

Length: 0.45 m

Width: 0.6 m

Height: 0.28 m

Manufacturer article number: GC-R0005

Availability: 1-4 available

Product information "19" Wall housing, 4U, deep black (RAL9005), 600x450 mm, fully assembled, Good Connections®"

The 19" network housing by Good Connections® is ideally suitable for any common usage in the EDV and telecommunications sector, because of its quick installation and stable steel construction. Due to its shallow depth of 450 mm, a space-saving installation is a given. The wall housing, which has already been assembled, consits of a central part, a lockable glazed door and two removable sidewalls. The removable side parts provide for an easy access behind the installed components. There’s a broad spectrum of accessories available for this 19" wall housing. Quick and easy wall installation Fix the mounting bracket to the wall and mount the housing accordingly. Details: - Lockable glazed security door and lockable side walls for added safety - Door hinge right/left exchangeable (factory-made on the right) - Removable side walls for better access to the build in components - Ventilation slots for active/passive ventilation - Preparation for 120 mm fan on the housing cover (fan not included - manufacturer number: GC-N0102) - Depth adjustable 19” profile rails on the front and backside - Max. installation depth: 41 cm (distance between the profile rails) - Marked benchmarked on the profile rails facilitate the installation of the components - Cable feed on the upper side is equipped with a brush strip to prevent ingress of contamination, the cable feed on the bottom is lockable via a covering - Two earthing points (once on the bottom and once on the front door) - Wall housing is being delivered fully assembled Technical specifications: - Material: 1,0-1,2 mm robust, powder-coated steel sheet with a high capacity - Protection class: IP20 - Scope of delivery: assembled wall housing incl. two keys and 20 fastening sets (cage nut, screw, washer) - Color: Deep black (RAL9005) - Benchmarks: 4 U in the 19" level - Measurements (WxDxH): 600 x 450 x 280 mm
