ACTIVE connection cable DisplayPort 1.2, plug incl. locking device, gold-plated, black, 20m, Good Connections®
Product number:
4810-200G
EAN:
4014619724819
Length:
10 m
Manufacturer article number:
4810-200G
Availability:
20-49 available
Description
Product information "ACTIVE connection cable DisplayPort 1.2, plug incl. locking device, gold-plated, black, 20m, Good Connections®"
The DisplayPort connection cable by Good Connections® ensures a consistent signal transmission up to 3840 x 2160 pixels (4K2K / UHD / Ultra HD) thanks to the combination of a high cable structure with triple cable shielding and plugs with copper contacts.
Active DisplayPort cable
There’s a small chip installed in the middle of the cable. This chip enhances the image signal, which results in a loss free transmission even for long cable distances.
Resolutions up to 4K2K / UHD
This DisplayPort cable supports resolutions up to 3840 x 2160 pixels by 60 Hz. The perfect connection for you new UHD display, your new monitor or TV.

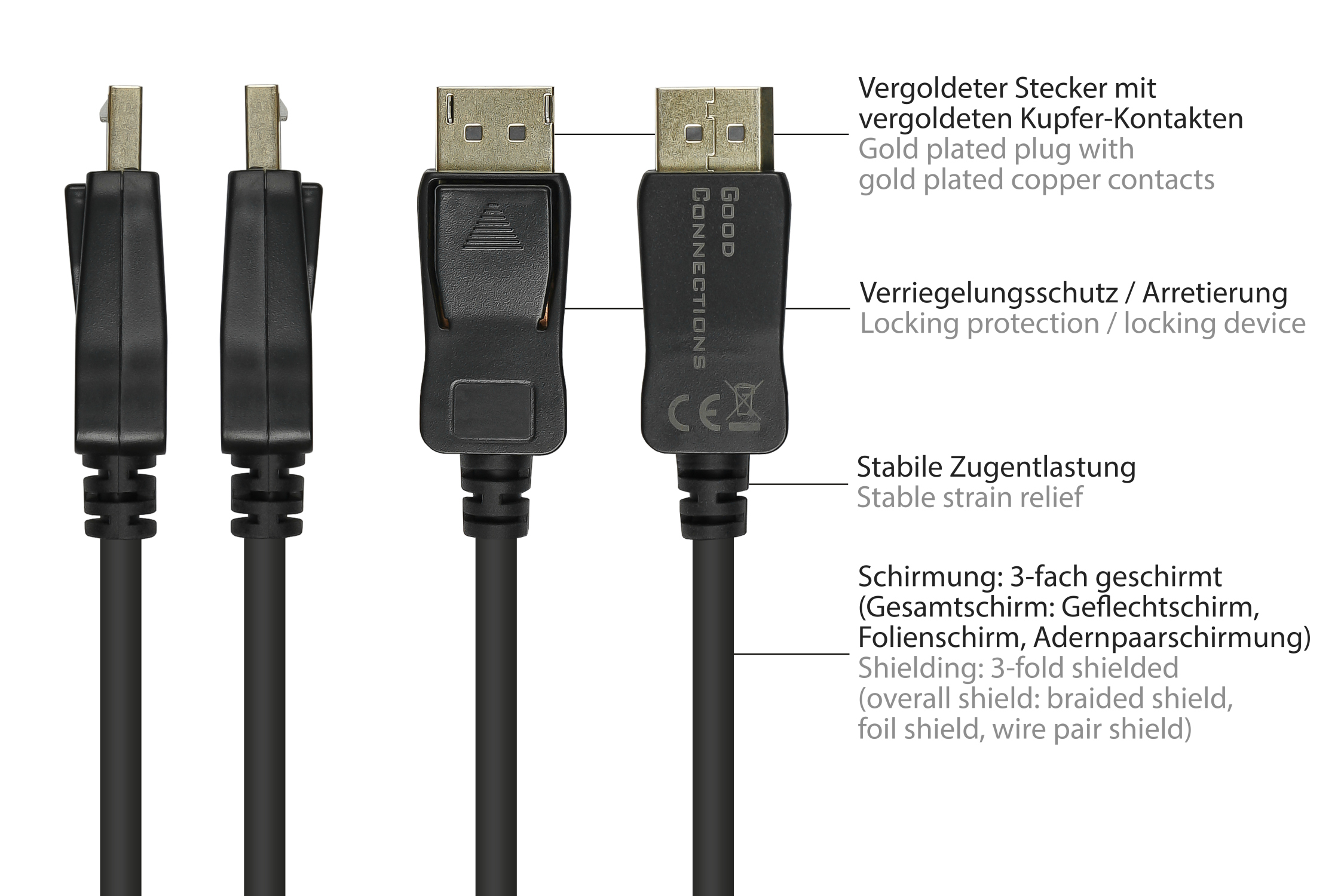

High-quality cable structure
The custom-fit plugs with gold-plated copper contacts ensure an optimal connection. The locking device which is combined with the plugs prevent an accidental slip-out. The shielded conductor consists by 99,99% of oxygen free copper (OFC). This enables an increased signal transmission and a higher breaking strength of the cable.
Technical specifications:
- DisplayPort 1.2 support, downsize compatible to 1.1 and older versions
- Supports 4K2K / UHD (3840 x 2160 pixels) with a 60Hz frequency with RGB and RGB/YUV4:4:4
- Supports HDCP 2.2, 3D, EDD, 7.1 Sound Channel
- Supports DDC, EDID, +5V, Hot plug
- Maximum data rate: 21,6 Gbit/s
- Cast DisplayPort plugs (20pin) on both sides, incl. locking device
- Conductor & contact material: 99,99% oxygen free copper
- Material outer sheath: PVC
- Cable diameter: 8,0 mm +/- 0,1 mm
- Conductor cross section: AWG26
- Shielding: triple shielded (overall shield: braided / foil shielding and foil pair shielding)
Colour: Black
Length: 20 m
