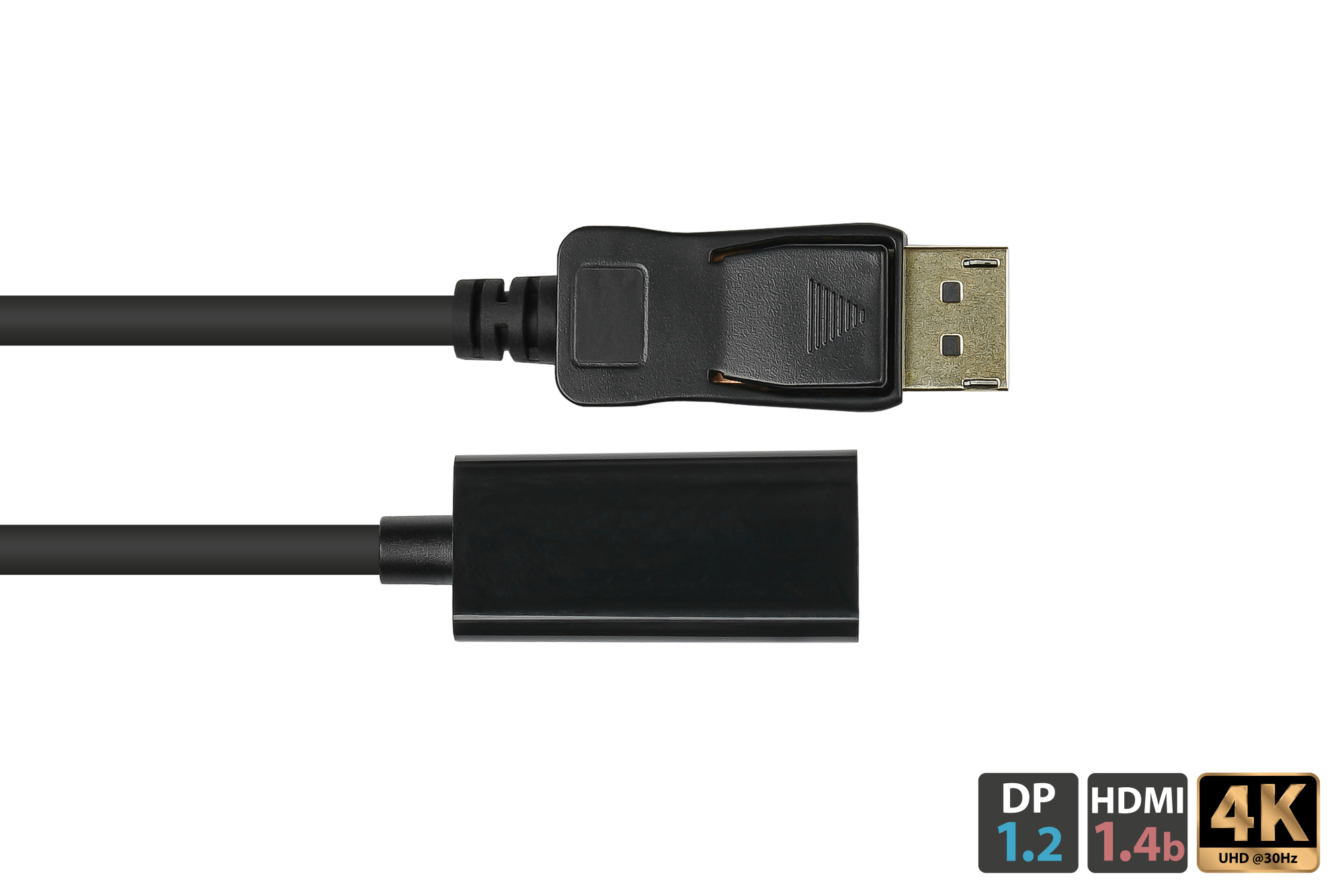

Adapter DisplayPort 1.2 male to HDMI 1.4b female, 4K @30Hz, gold-plated contacts, approx. 20cm, Good Connections®
Product number:
DP-AD08
EAN:
4014619603336
Length:
0.2 m
Manufacturer article number:
DP-AD08
Availability:
50-99 available
Description
Product information "Adapter DisplayPort 1.2 male to HDMI 1.4b female, 4K @30Hz, gold-plated contacts, approx. 20cm, Good Connections®"

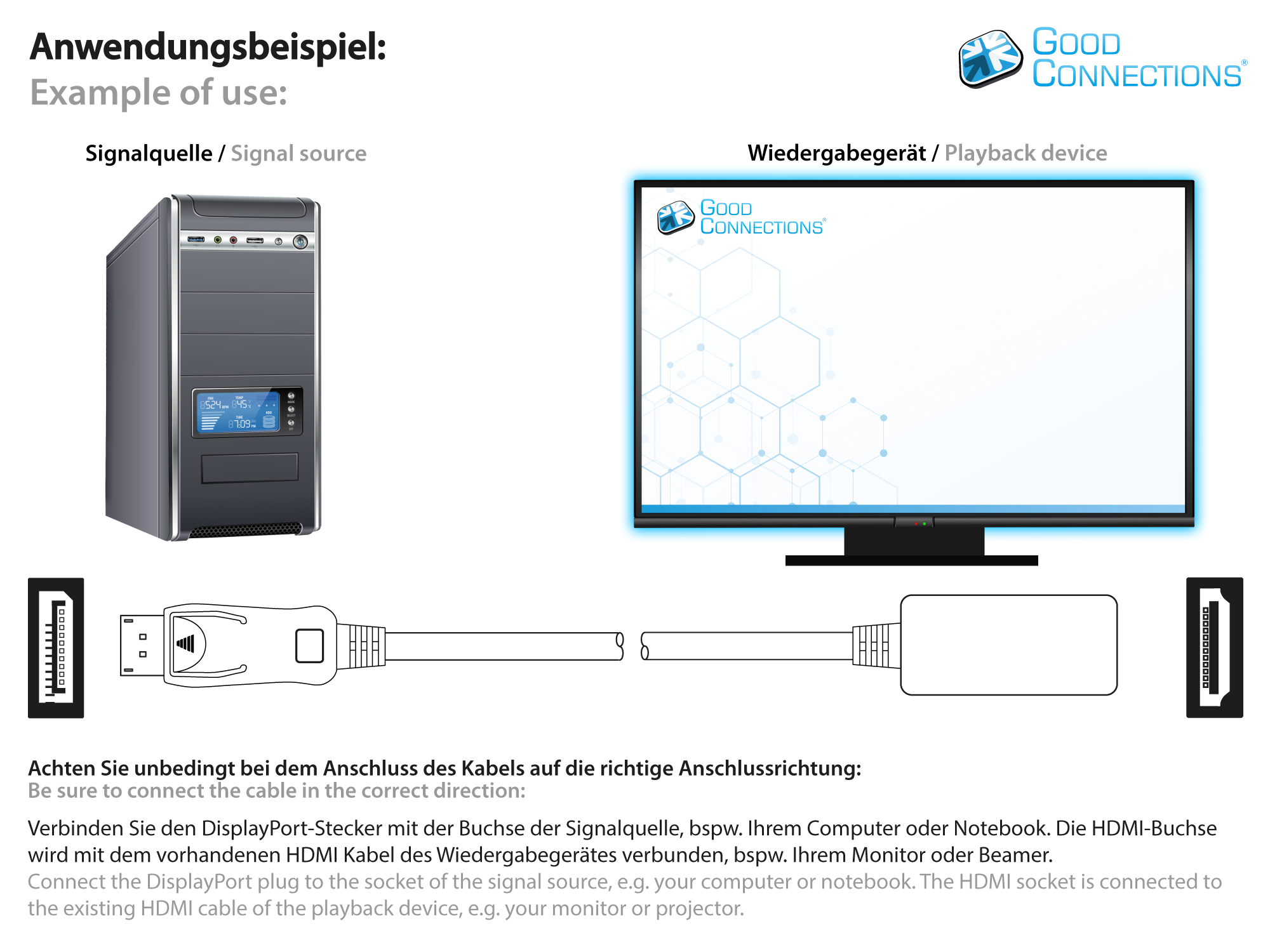

The DisplayPort 1.2 to HDMI 1.4b adapter from Good Connections® enables signal transmission up to 4K / UHD @30Hz. The DisplayPort connector connects the signal source (PC, Ultrabook, notebook, etc.) with the HDMI cable of the playback device (monitor, TV, beamer).
Easy handling through plug and play
Connect and get started! Connect the adapter to the signal source (DisplayPort socket) and the HDMI cable of the displaying device, no external power supply or drivers are required.
Resolutions up to 4K at 30Hz
This high quality adapter supports resolutions up to 4K at 30Hz (colour sampling 4:4:4 or RGB).
Selection of supported and tested resolutions:
- 3840*2160 @30Hz - 4:4:4 Color (DP 1.2 IN / HDMI 1.4B OUT)
Technical specification:
- DisplayPort 1.2 plug to HDMI 1.4b socket

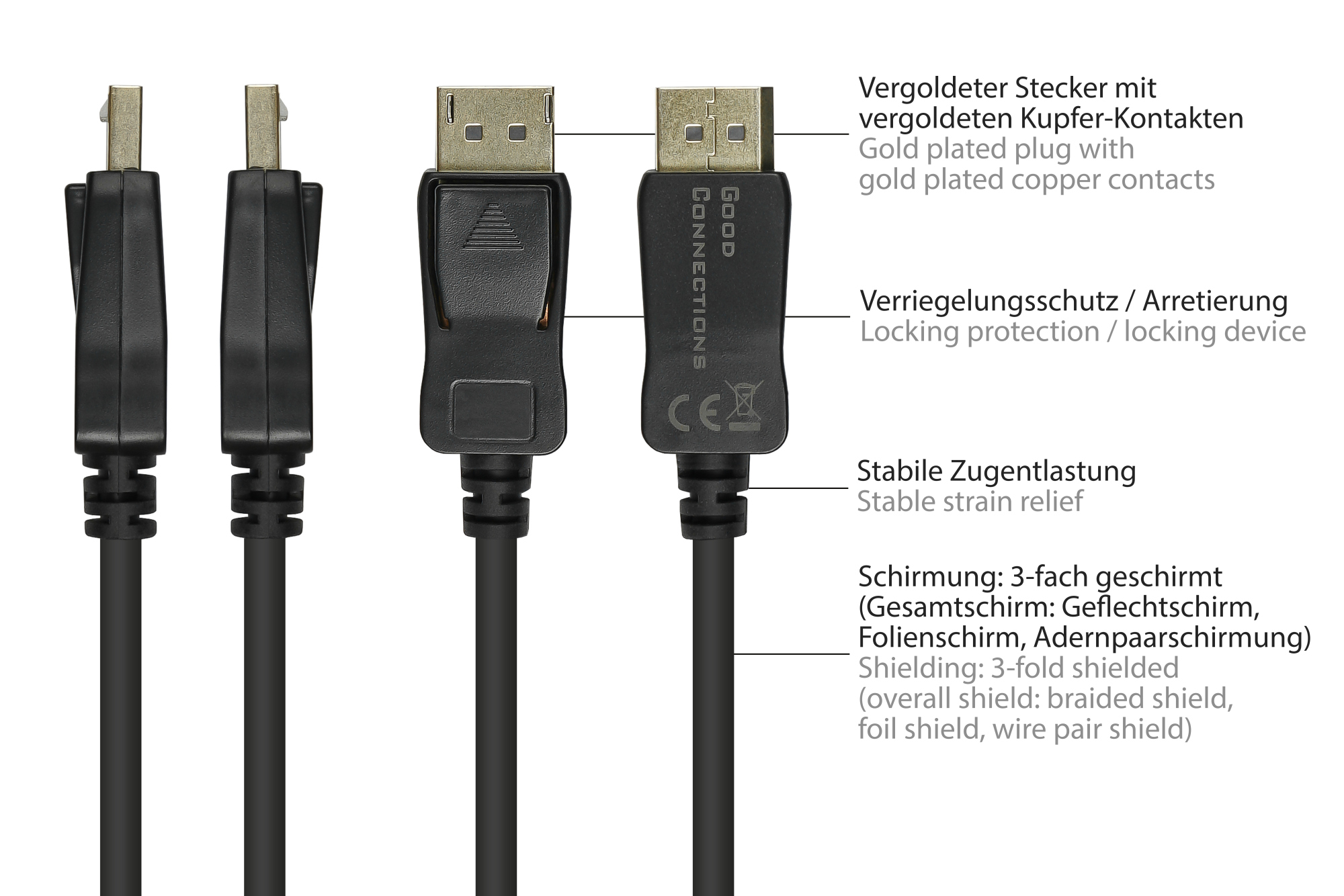

- Gold-plated contacts
- Signal direction: DisplayPort to HDMI
- DisplayPort 1.2 support, backwards compatible
- HDMI 1.4b support, backward compatible
- Supports 4K / UHD at a frequency of 30 Hz (colour sampling 4:4:4 or RGB)
- Chipset: LT8611SXA, passive
- Conductor cross-section: AWG 32/1
- Conductor material: Copper (CU)
- Cable sheath material: PVC

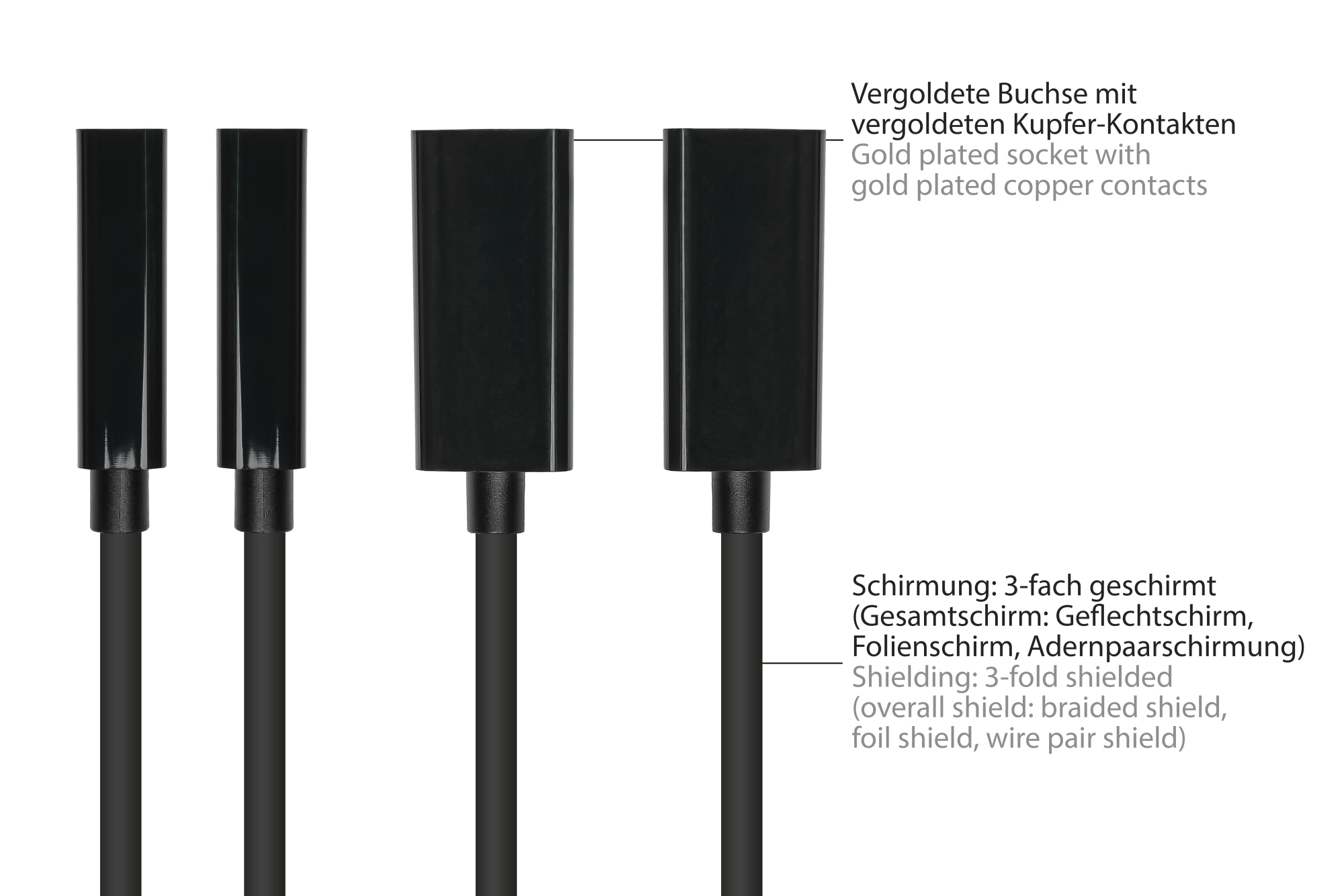

- Shielding: 3-fold shielded (braided shield, foil shield, wire pair shield)
Colour: Black
Length: 20 cm +/- 2 cm
Note:
Please note that higher colour samplings reduce the refresh rate. The maximum resolution may differ depending on the connected hardware and the system used.
