Adapter HDMI 2.0b male + USB Power to DisplayPort 1.2 female, 4K @60Hz, gold-plated contacts, copper wire, black, 0,3m, Good Connections®
Product number:
HDMI-AD22
EAN:
4014619603404
Length:
0.3 m
Manufacturer article number:
HDMI-AD22
Availability:
50-99 available
Description
Product information "Adapter HDMI 2.0b male + USB Power to DisplayPort 1.2 female, 4K @60Hz, gold-plated contacts, copper wire, black, 0,3m, Good Connections®"
The HDMI 2.0b to DisplayPort 1.2 adapter from Good Connections® enables signal transmission up to 4K / UHD @60Hz. The HDMI connector connects the signal source (PC, ultrabook, notebook, etc.) with the DisplayPort cable of the playback device (monitor, TV, beamer).
Easy handling through Plug and Play

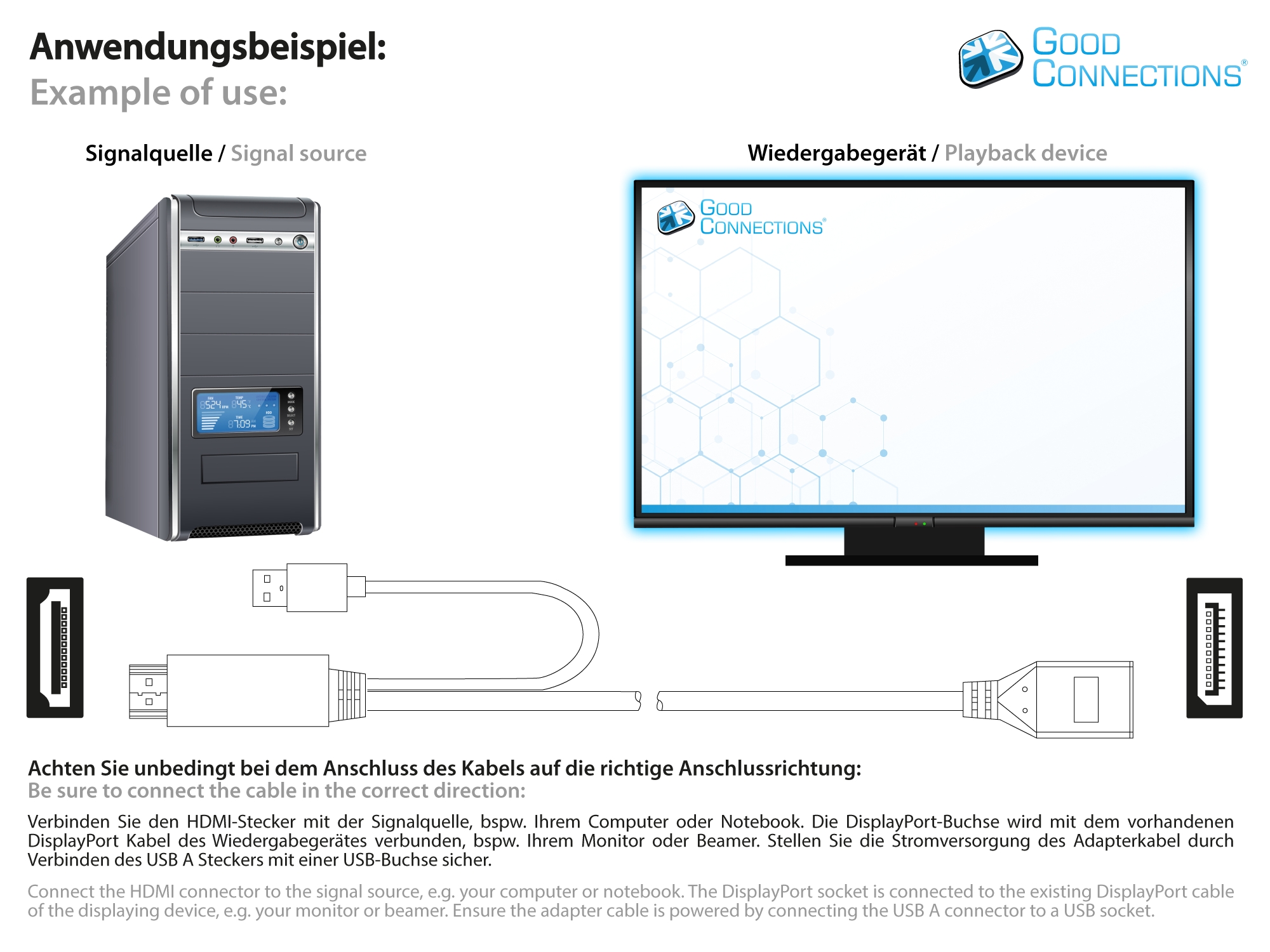

Connect and get started! Connect the adapter to the signal source (HDMI socket) and the DisplayPort cable of the displaying device. Ensure the power supply of the adapter cable by connecting the USB A plug to a USB socket. If the signal source does not have a free USB port, a USB power supply unit can also serve as a power source. The adapter can be used OS independent, i.e. drivers are not required.
Resolutions up to 4K at 60Hz
This high-quality adapter supports resolutions up to 4K at 60Hz.
Technical specification:
- HDMI 2.0b plug with USB power to DisplayPort 1.2 socket

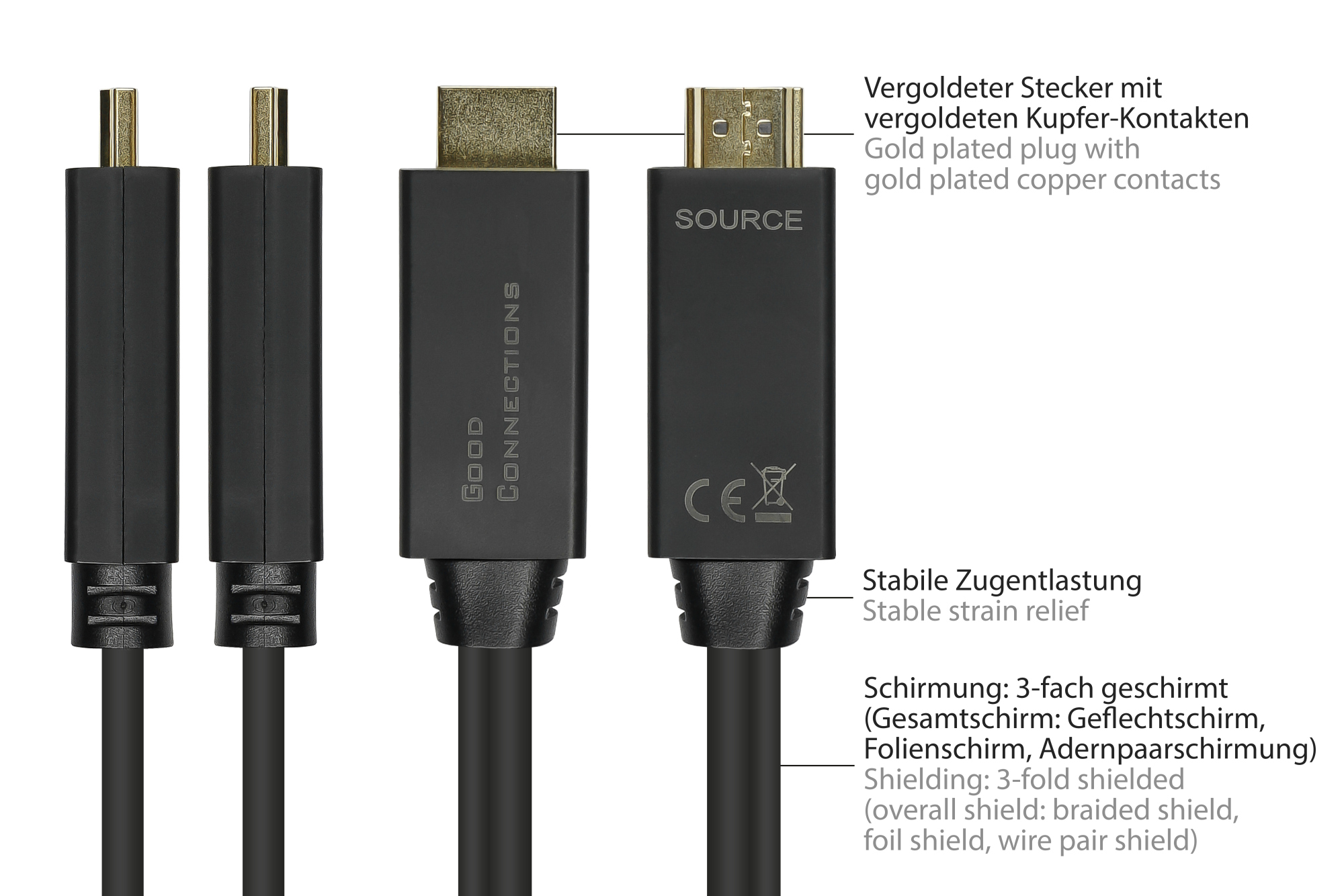

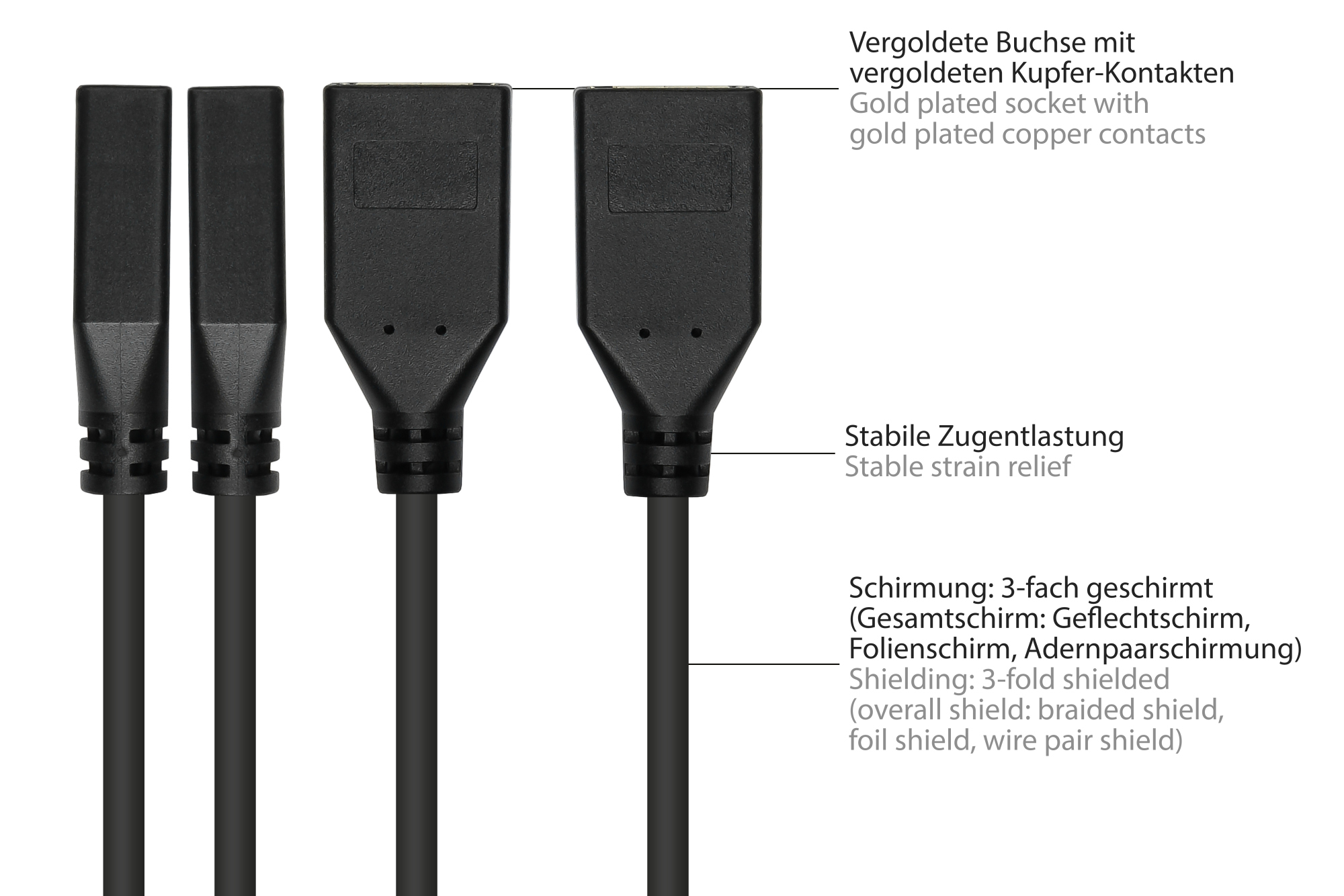

- Gold-plated contacts
- Signal direction: HDMI to DisplayPort
- DisplayPort 1.2 support, backwards compatible
- HDMI 2.0b support, backward compatible
- Supports 4K / UHD at a frequency of 60 Hz
- Chipset: LT6711A
- Power consumption (operation): approx. 1000 mW
- Power consumption (standby): approx. 10 mW
- Conductor cross-section: AWG 30/1
- Conductor material: Copper (CU)
- Cable sheath material: PVC
- Shielding: 3-fold shielding (braided shield, foil shield, wire pair shielding)
Colour: Black
Length: approx. 0,3 m / 30 cm
Notes:
Please note that higher colour samplings reduce the refresh rate. The maximum resolution may differ depending on the hardware connected and the system used. The adapter only works in the specified signal direction and only when the USB cable is connected and the power source supplies sufficient current.
