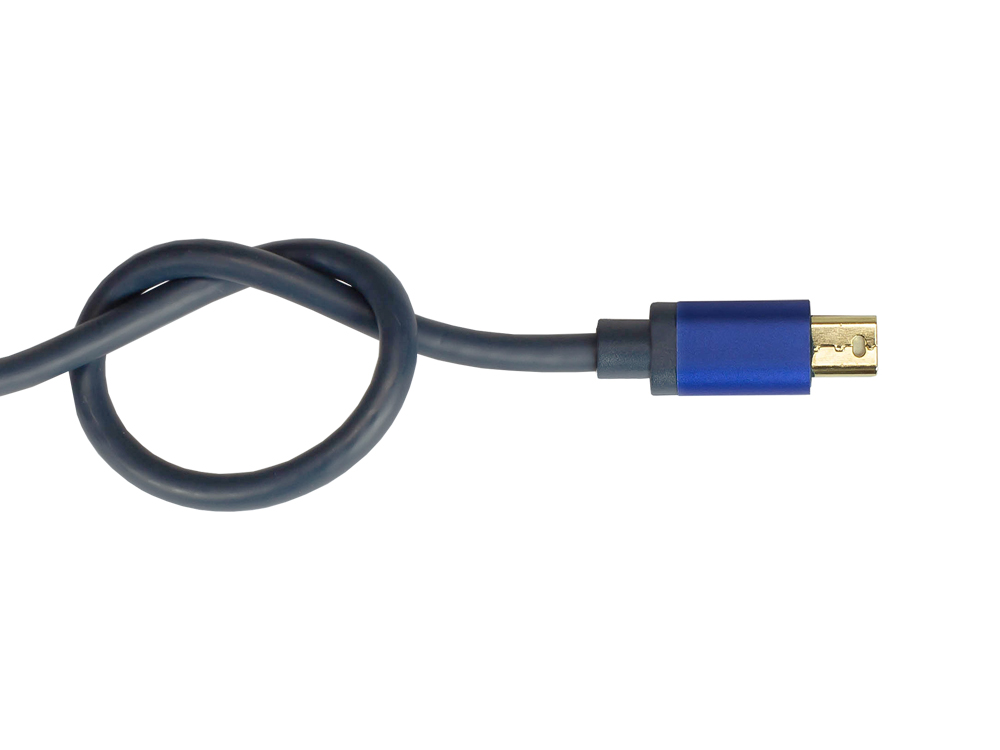

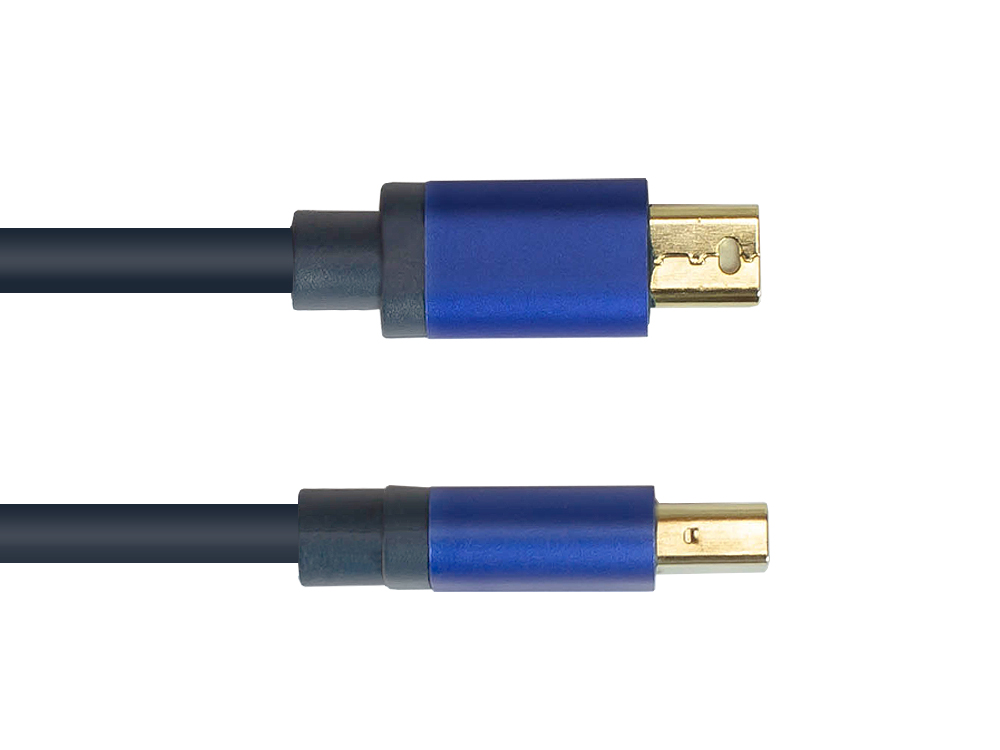

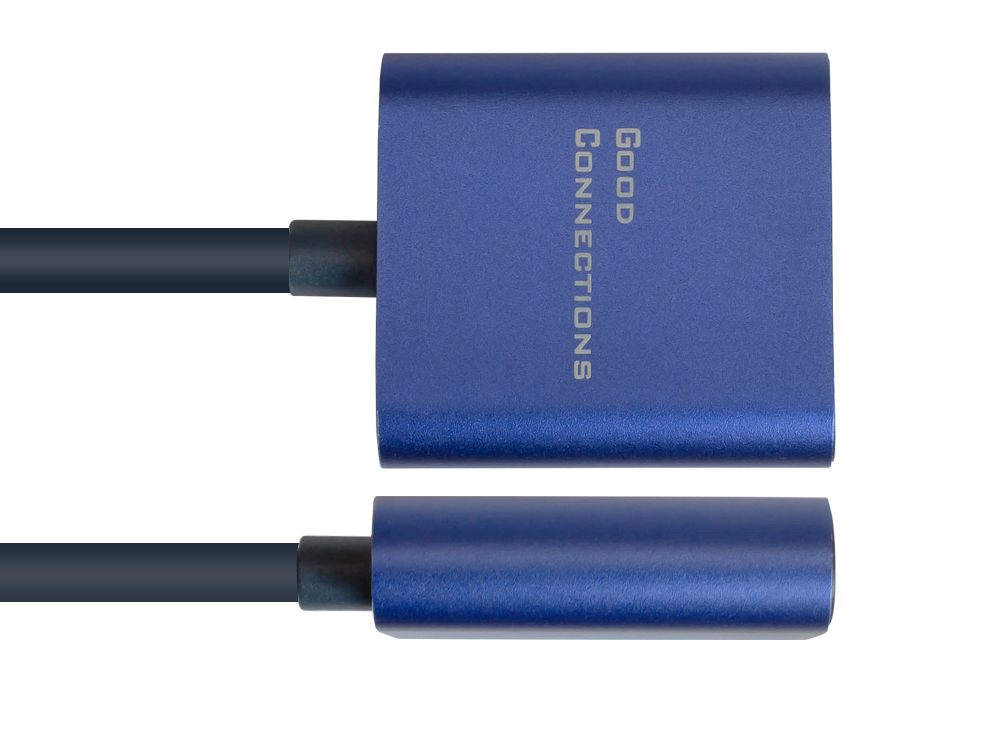

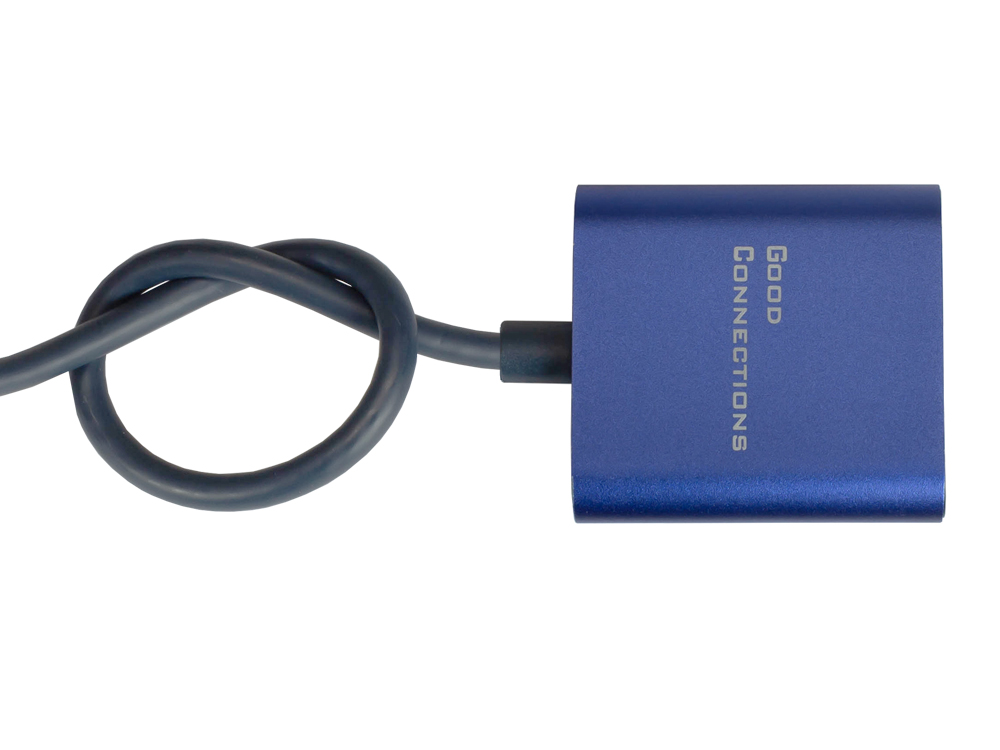

Adapter Mini DisplayPort 1.4 male to HDMI 2.0 female, 4K UHD @60Hz, aluminium housing, approx. 20cm, Good Connections®
Product number:
MDP-HDMI2
EAN:
4014619709168
Length:
0.2 m
Manufacturer article number:
MDP-HDMI2
Availability:
50-99 available
Description
Product information "Adapter Mini DisplayPort 1.4 male to HDMI 2.0 female, 4K UHD @60Hz, aluminium housing, approx. 20cm, Good Connections®"
The Mini DisplayPort 1.4 to HDMI 2.0 adapter from Good Connections® enables signal transmission up to 4K / UHD @60Hz. The Mini DisplayPort connector connects the signal source (PC, Ultrabook, Notebook etc.) to the HDMI cable of the displaying device (monitor, TV, beamer).
Easy handling through Plug and Play
Plug it in and get started! Connect the signal source (Mini DisplayPort socket) with the HDMI cable of the playback device, no external power supply or drivers are required.
Resolutions up to 4K at 60Hz
This high quality processed adapter cable supports resolutions up to 4K at 60Hz (colour sampling 4:4:4 or RGB). In addition, HDR at 4K 60Hz and a colour sampling 4:2:2 is supported.
selection of supported and tested resolutions:*
- 3840*2160 @60Hz - 4:4:4 Color (DP 1.4 IN / HDMI 2.0 OUT)
- 3840*2160 @30Hz - 4:4:4 Color (DP 1.2 IN / HDMI 1.4B OUT)
Technical specification:
- Mini DisplayPort 1.4 male to HDMI 2.0 female
- Signal direction: Mini DisplayPort to HDMI
- DisplayPort 1.4 support, downward compatible
- HDMI 2.0 support, backward compatible
- HDCP2.2 and HDCP 1.4 support
- Supports 4K / UHD at a frequency of 60 Hz (color sampling 4:4:4 or RGB)
- Connections with aluminium housing
- Chipset: SCDH60V1, Level Shift
- Conductor cross section: AWG 32/1
- Conductor material: copper (CU)
- Sheath material Cable : Soft-PVC
- Outer diameter cable: 5 mm +/- 0.2 mm
- Shielding: 3-fold shielding (braided shield, foil shield, wire pair shielding)
Colour: Dark blue
Length: 20 cm +/- 2 cm
Note:
Please note that higher color samples reduce the refresh rate. The maximum resolution may vary depending on the connected hardware and the system used.
* Tested with Quantum Data 780E Handhold Test Instrument for HDMI 2.0
