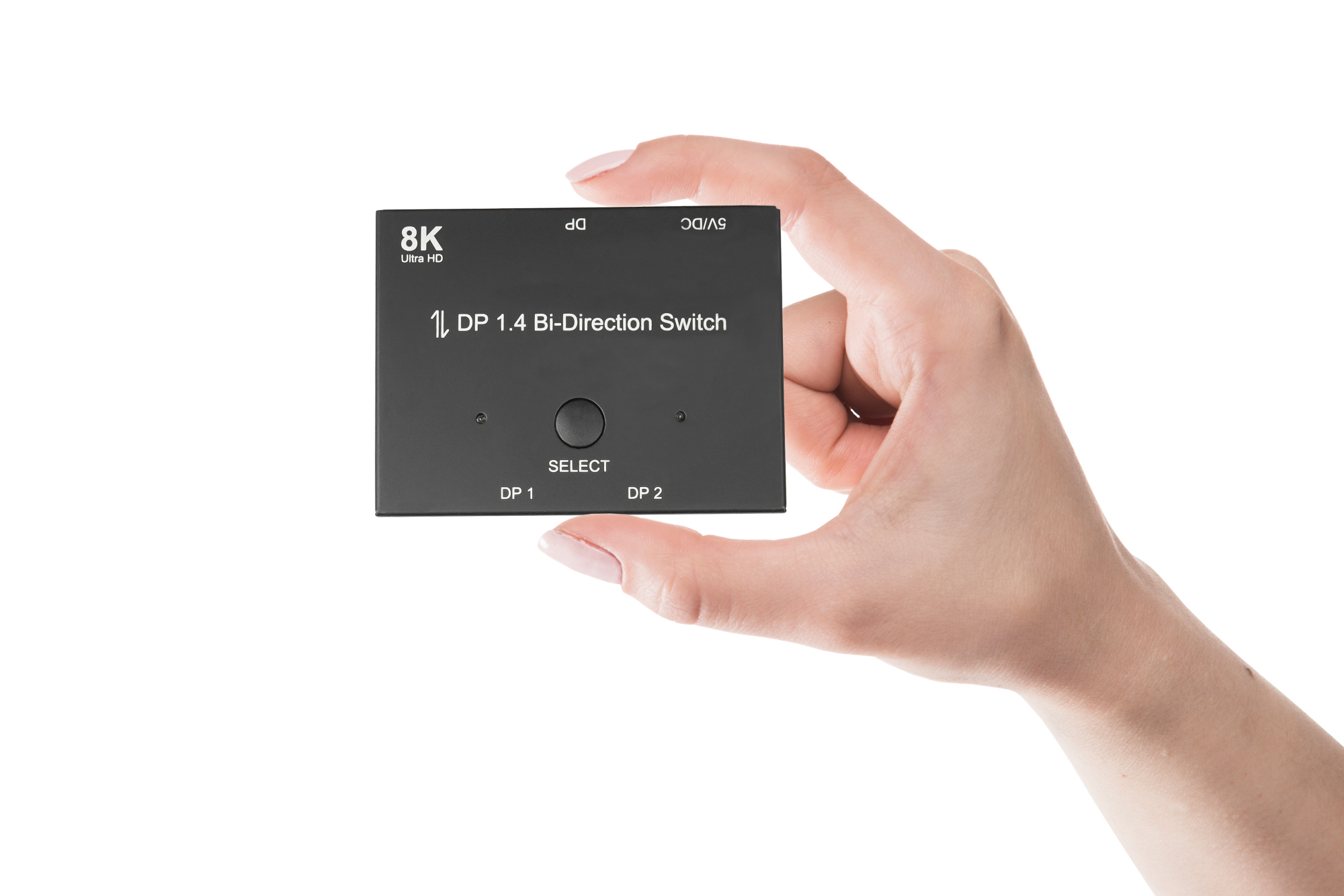

DisplayPort 1.4 Switch, 2-way, bidirectional, 8K @30Hz, Good Connections®

To order this product, please log in here.

Product number: GC-M0262

EAN: 4014619556458

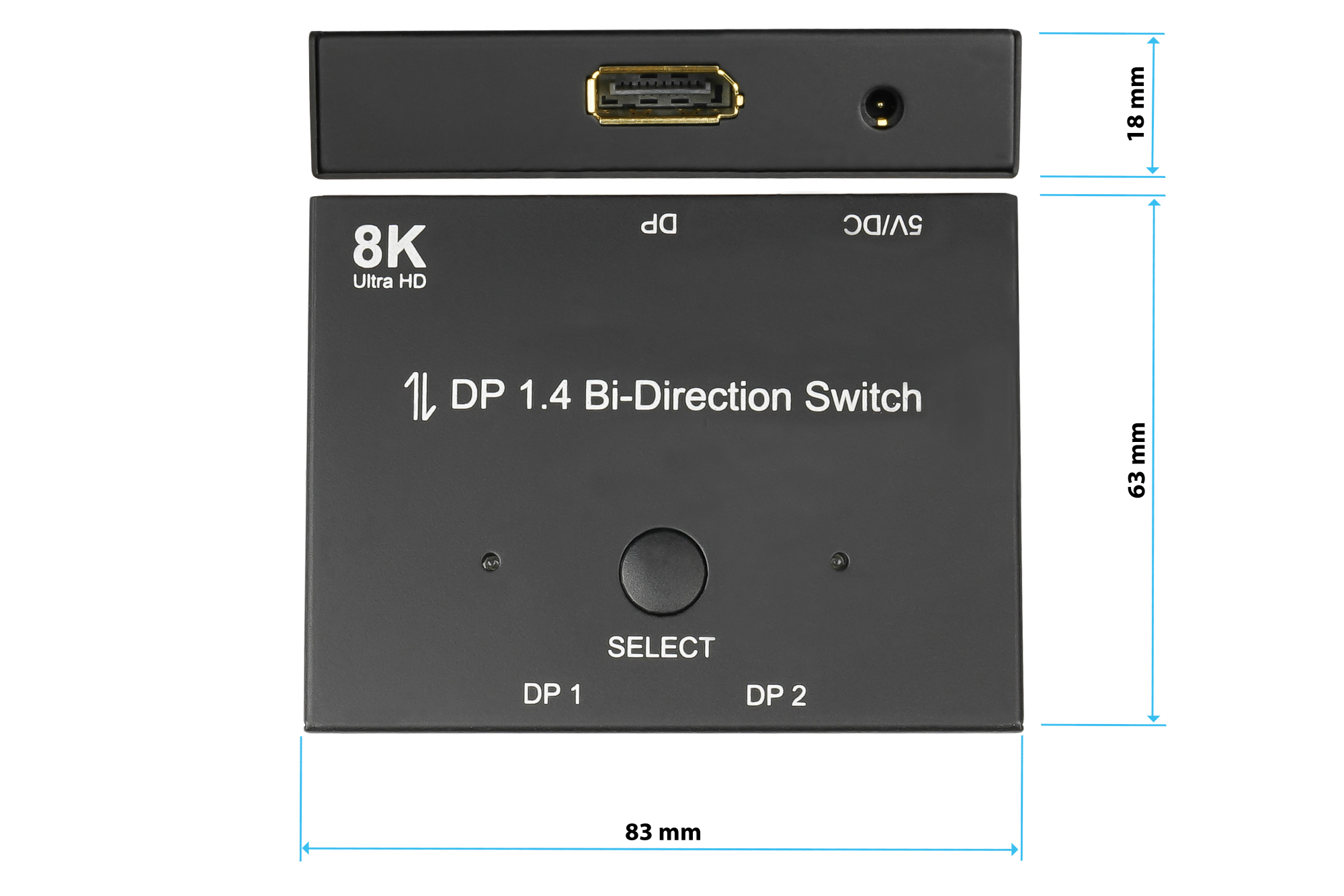

Length: 0.06 m

Width: 0.08 m

Height: 0.02 m

Manufacturer article number: GC-M0262

Availability: 50-99 available

Product information "DisplayPort 1.4 Switch, 2-way, bidirectional, 8K @30Hz, Good Connections®"

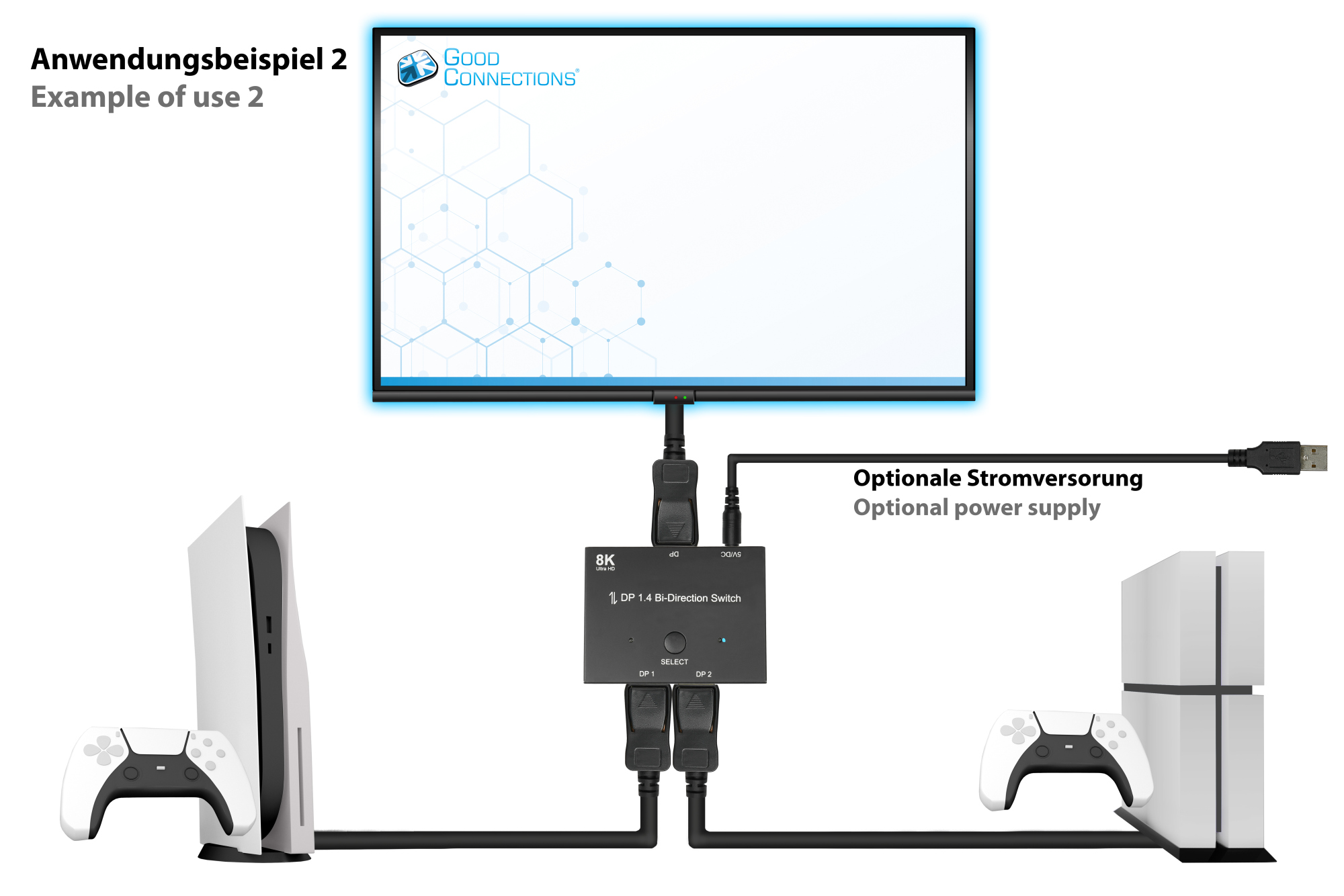

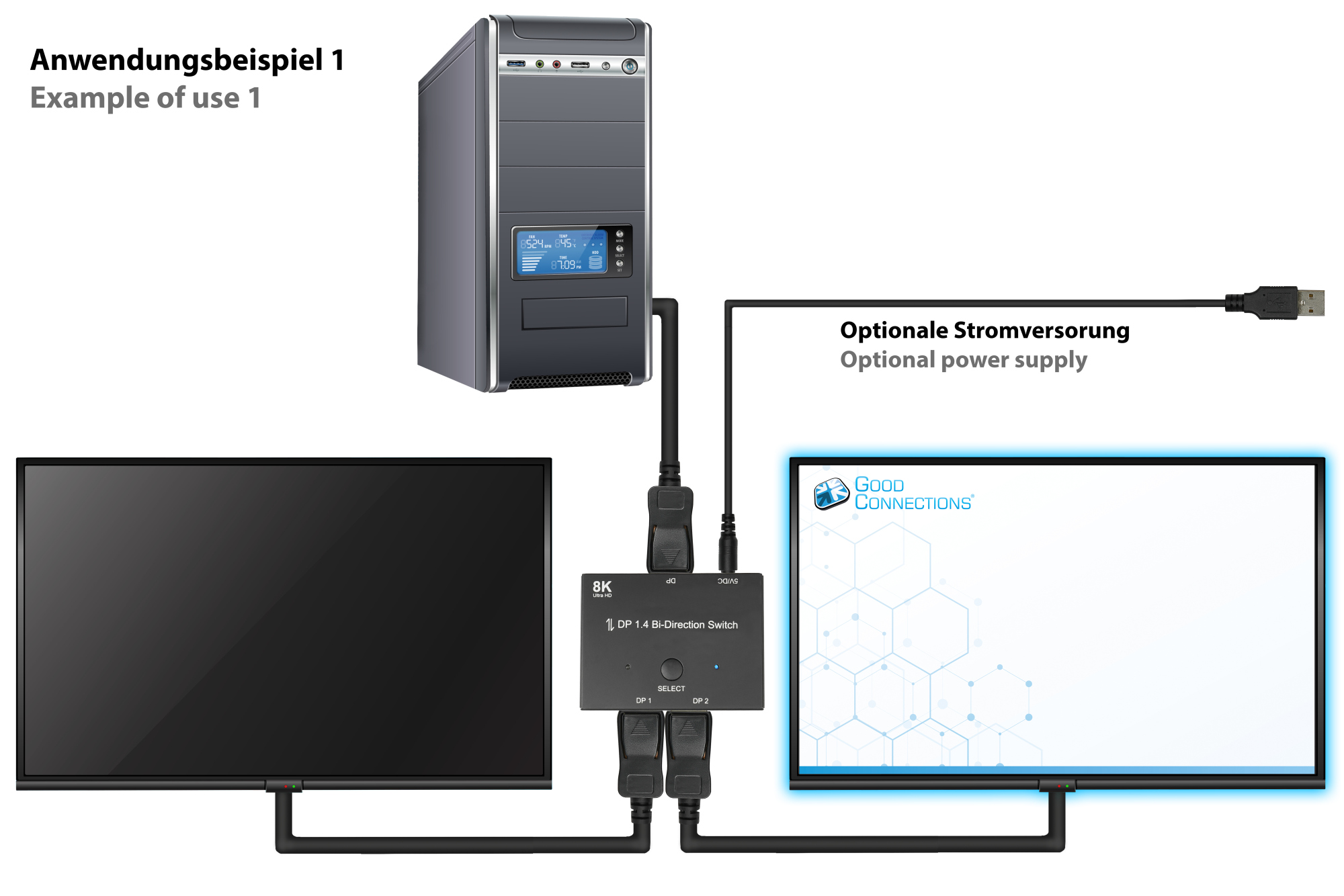

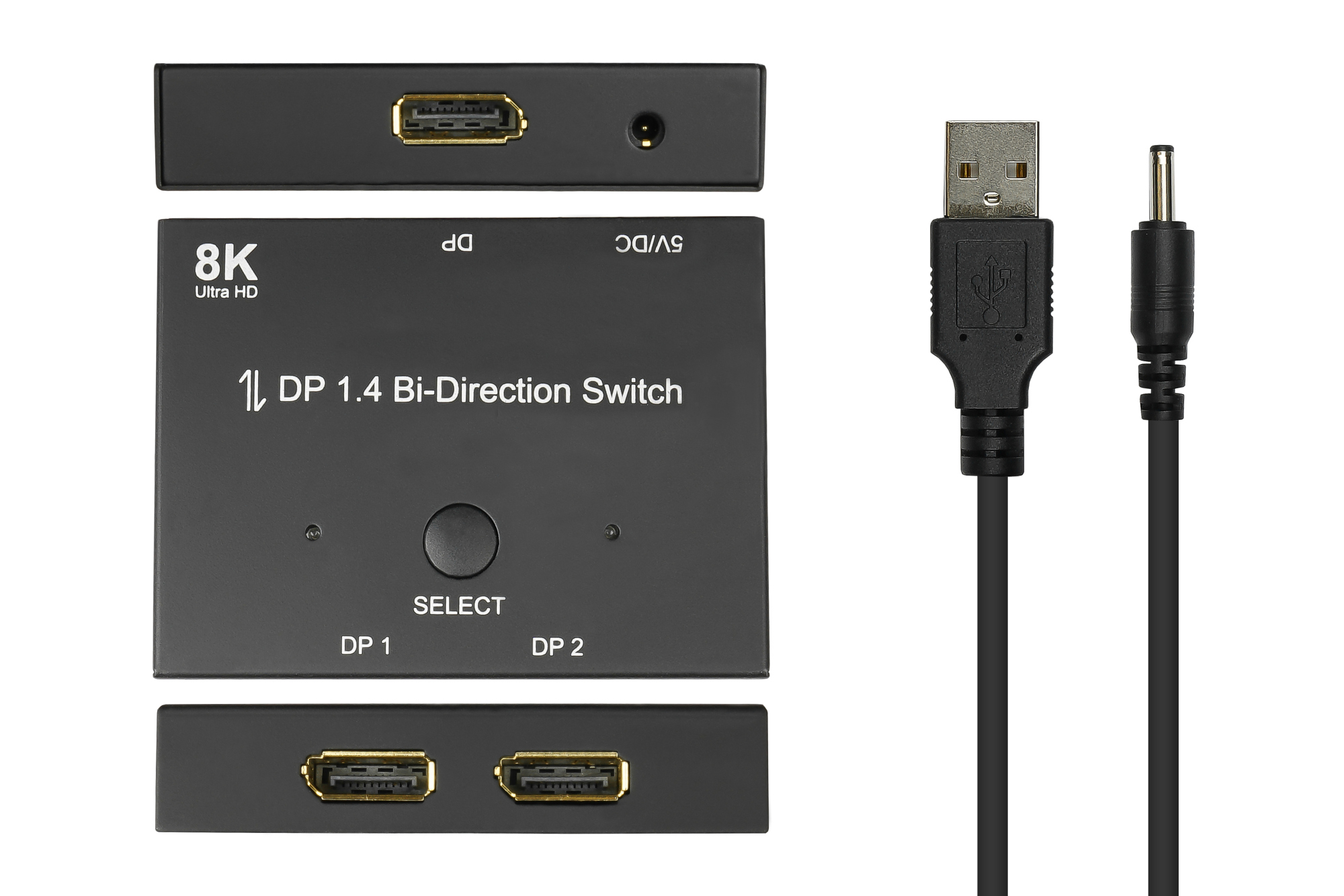

With the compact and bidirectional DisplayPort 1.4 switch from Good Connections® you always have the right solution for connecting devices and monitors at hand. The switch is bidirectional and therefore suitable for two different application scenarios: Application Scenario - 1 in / 2 out A device can be connected to two different screens. By pressing the "Select" button, the screen on which the input signal is to be displayed can be selected. The selected output is represented by a blue LED. Please note that a simultaneous output on both connected screens is not possible. Application scenario - 2 in / 1 out Two devices can be connected to one screen. By pressing the "Select" button, the desired input signal can be selected. The selected input is represented by a blue LED. Plug & Play Connect and go! Connect the DisplayPort cables of the signal source(s) and signal sink(s) to the DisplayPort connectors of the switch. Drivers are not required. Normally, no external power supply is required. If your existing DisplayPort devices do not provide enough power to operate the switch, the included USB to DC cable can be used to provide power. Technical Specification: - DisplayPort 1.4 support, backward compatible - Supports 8K / UHD-2 (7680*4320 pixels) at a frequency of 30Hz. - Supports HDCP 2.2 and HDCP 1.4 - Connector 1: DisplayPort female, gold plated contacts - Connector 2: 2x DisplayPort female, gold plated contacts - Metal housing - Signal direction: Bidirectional - Possible applications: 2x DP in 1x DP out or 1x DP in 2x DP out Scope of delivery: Switch, USB to DC cable 1m, manual Dimensions (WxDxH): 83 x 63 x 18 mm Weight: 110 g (switch only) Notes: Please note that higher color samplings reduce the refresh rate. The maximum resolution may differ depending on the connected hardware and the system used. To ensure proper function, the connected DisplayPort cables should not be longer than one meter each.
