HDMI 2.1 Switch 2-way (2x input and 1x output), directional, 8K @30Hz, Good Connections®
Product number:
GC-M0261
EAN:
4014619556441
Length:
0.05 m
Width:
0.07 m
Height:
0.01 m
Manufacturer article number:
GC-M0261
Availability:
50-99 available
Description
Product information "HDMI 2.1 Switch 2-way (2x input and 1x output), directional, 8K @30Hz, Good Connections®"
With the compact HDMI 2.1 Switch from Good Connections® you always have the right solution for connecting two HDMI devices to one screen. The switch is directional and therefore only suitable for the following usage scenario:

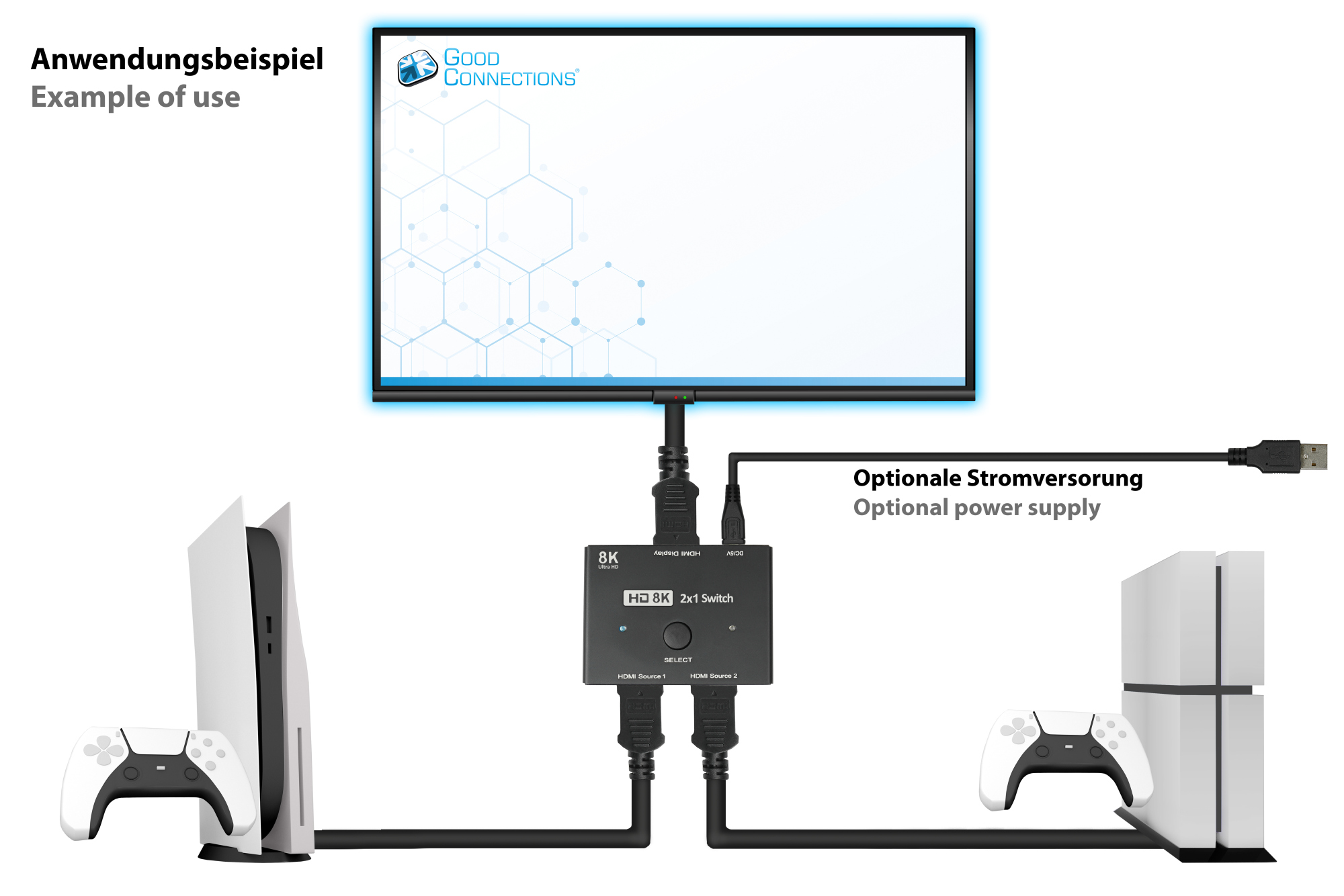

Application scenario - 2 in / 1 out
Two devices can be connected to one screen. By pressing the "Select" button, the desired input signal can be selected. The selected input is represented by a blue LED.
Plug & Play
Connect and go! Connect the HDMI cables of the signal source(s) and signal sink(s) to the HDMI connectors of the switch. Drivers are not required. Normally, no external power supply is required. If your existing HDMI devices do not provide enough power to operate the switch, the included USB cable can be used to provide power.
Technical Specification:
- HDMI 2.1 support, backward compatible
- Supports 8K / UHD-2 (7680*4320 pixels) at a frequency of 30Hz.
- Supports HDCP 2.3
- Input: 2x HDMI jack, gold-plated contacts
- Output: HDMI socket, gold-plated contacts
- Metal housing
- Signal direction: Directional
- Application: 2x HDMI in 1x HDMI out

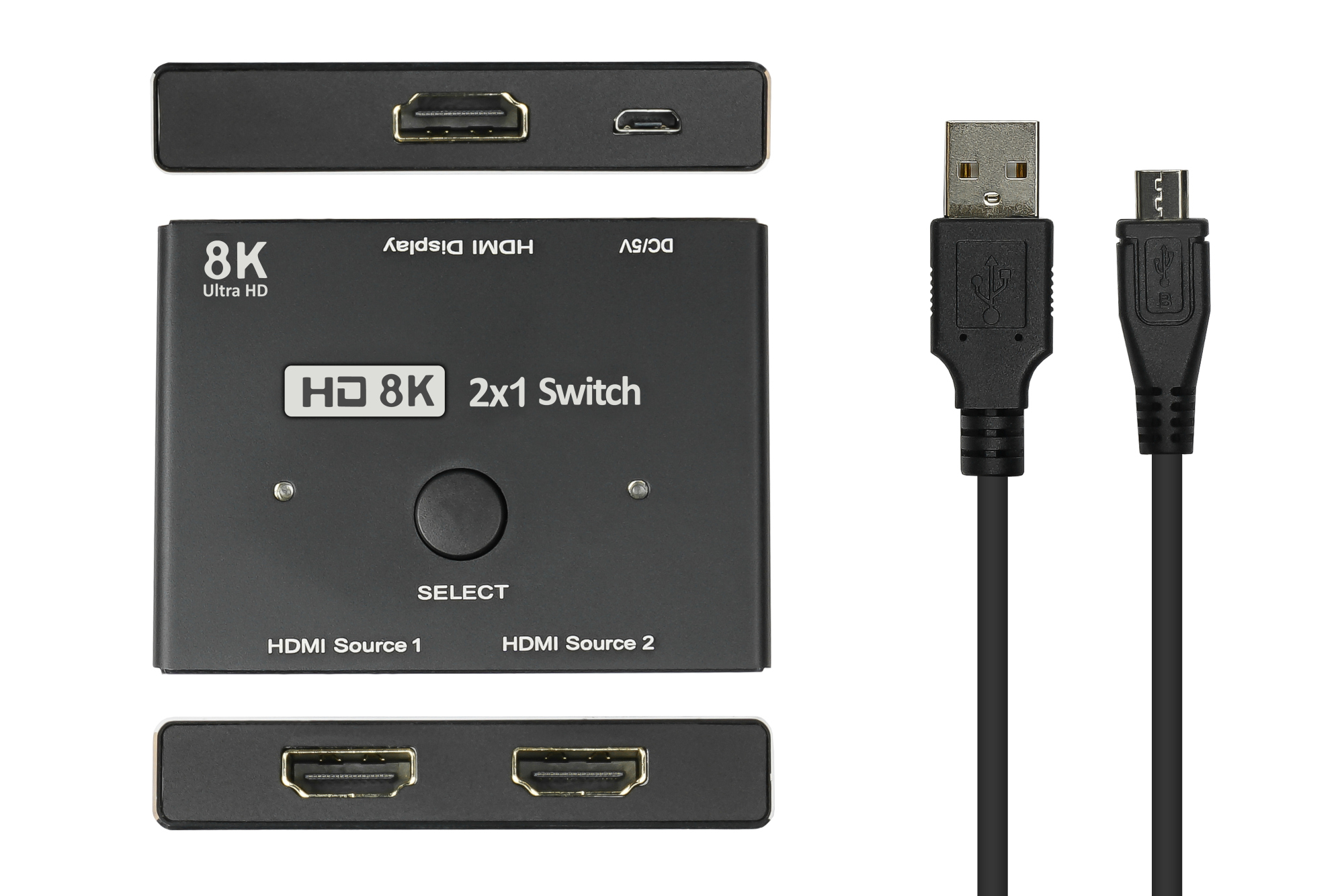

Scope of delivery: Switch, USB plug A to Micro B cable 1m, user manual

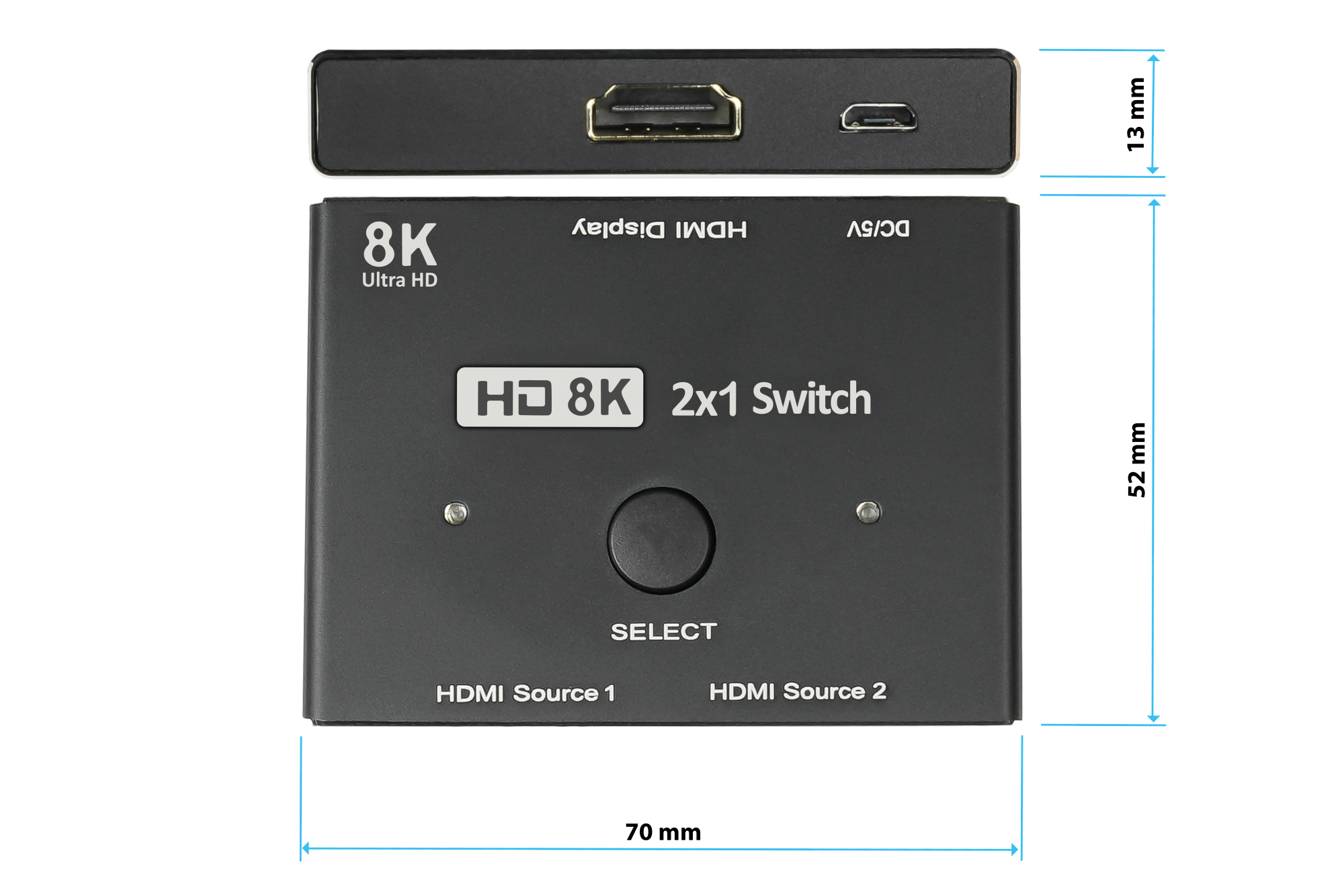

Dimensions (WxDxH): 70 x 52 x 13 mm
Weight: 38 g (switch only)
Notes:
Please note that higher color samplings reduce the refresh rate. The maximum resolution may differ depending on the connected hardware and the system used.
To ensure proper function, the connected HDMI cables should not be longer than one meter each.
