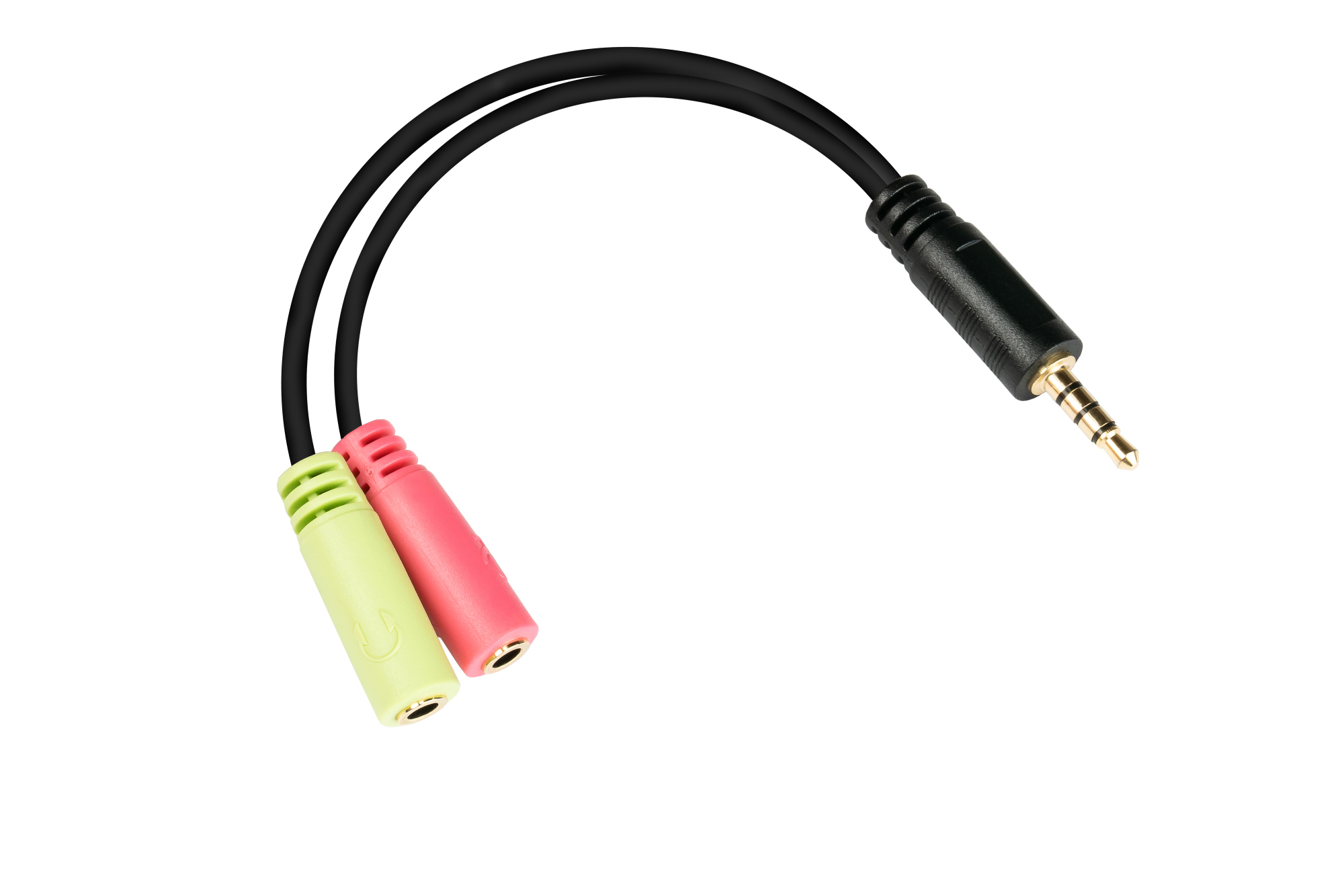

Headset adapter, 4-pin 3.5mm jack plug to 2x 3-pin 3.5mm jack socket, CTIA pin assignment, black, 0.2m, Good Connections®
Product number:
AD-HS01
EAN:
4014619553600
Length:
0.2 m
Width:
0.01 m
Height:
0.01 m
Manufacturer article number:
AD-HS01
Availability:
5-9 available
Description
Product information "Headset adapter, 4-pin 3.5mm jack plug to 2x 3-pin 3.5mm jack socket, CTIA pin assignment, black, 0.2m, Good Connections®"
The headset adapter from Good Connections® allows you to use your conventional headset with two three-pin 3.5 mm jack plugs on your smartphone, tablet, notebook and many other devices with four-pin 3.5 mm jack socket. For easy connection, the connectors are color coded.
Pin assignment according to CTIA standard.
The four-pin jack plug of this adapter is assigned according to the Cellular Telecommunications Industry Association (CTIA) standard. According to this standard, the connector is assigned as follows from tip to shank:
- L = Left audio signal
- R = Right audio signal
- GND = Common ground (return line)
- AUX = Additional signal, e.g. microphone
Technical specification:/b>
- Connector 1: 3.5 mm jack plug (4-pin, gold-plated)
- Jack plug with pin assignment according to CTIA standard (audio left / audio right / GND / AUX)
- Connector 2: 2x 3.5 mm jack socket (3-pin, gold-plated)
- Jack socket (pink) = microphone connection
- Jack socket (green) = audio connection
- Copper conductor material (CU)
Color: Black
Length: approx. 20 cm
Notes:
Please check first if your devices support OMTP or CTIA standard. A four-pin 3.5 mm jack socket with CTIA pin assignment is required for the adapter to function properly. The OMTP variant is used in most older devices, the CTIA variant in most newer devices, for example Apple devices (iPhone, iPad, iPod and MacBook) as well as modern smartphones and notebooks.
