Industrial Connector S1 - Power (3-pin) Plug with click locking, solder termination, M20, IP65/67, Good Connections®

To order this product, please log in here.

Product number: IC01-20P301

EAN: 4014619709328

Length: 0.06 m

Width: 0.03 m

Height: 0.04 m

Manufacturer article number: IC01-20P301

Availability: 20-49 available

Product information "Industrial Connector S1 - Power (3-pin) Plug with click locking, solder termination, M20, IP65/67, Good Connections®"

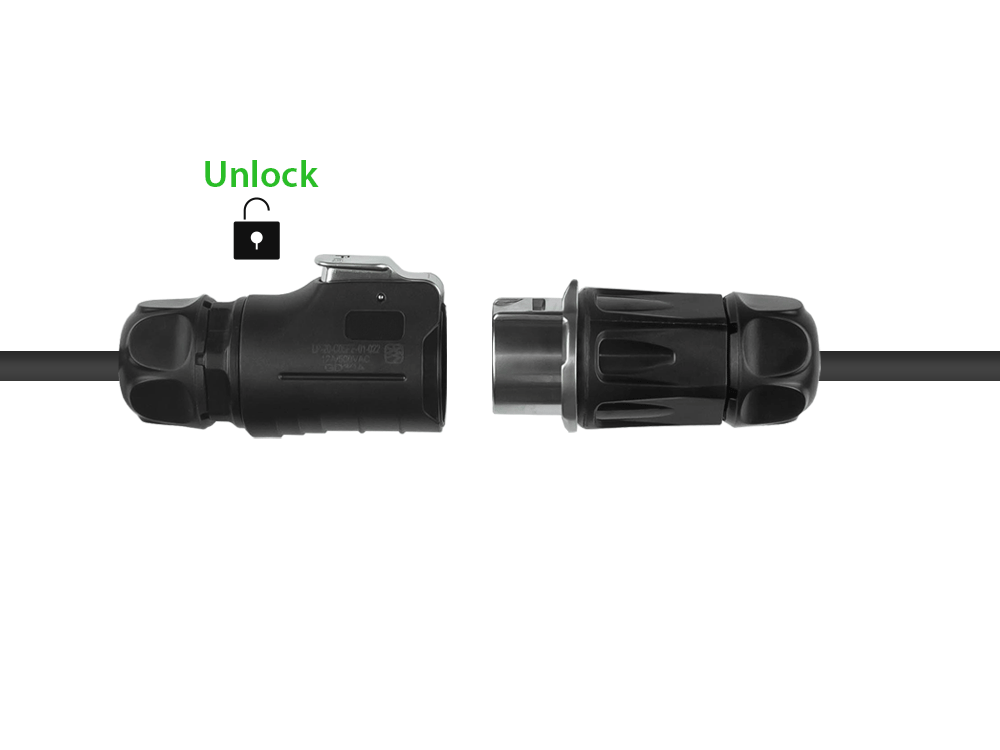

The high-quality, precision-fit and robust connectors from Good Connections® have been developed for the most demanding industrial applications. By using modern production facilities, standardised processes and high-quality materials, a consistently high processing quality of the products is achieved. Series 1 - metal version with "click" lock. The quick and easy-to-use "click" closure, in combination with the solid metal / high-performance plastic housing and the gold-plated contacts, reliably ensures secure and stable connection and transmission performance at all times. Application areas Good Connections® Industrial Connectors are highly reliable and stable in even the most demanding application scenarios. Wear-resistant, anti-corrosive, waterproof and dustproof - these properties make these connectors all-rounders for use in automation, electronics, energy, communications, lighting and safety technology. Technical specification: - Locking technology: "Click - Protection class: IP65 / IP67 - For M20 cut-outs - Power (3-pin) plug with click locking mechanism - Durability: > 500 mating cycles - Operating temperature: -40 °C to +80 °C - Number of contacts: 3 - Solder connection - Housing material: metal with zinc alloy (pearl hard chrome) and high-performance plastic - Contact material: copper alloy (gold-plated) - Sealing: silica gel / silica gel Plug-in compatible products: - Good Connections® manufacturer no.: IC01-20P301 / EAN: 4014619709328 - Good Connections® manufacturer no.: IC01-20P302 / EAN: 4014619709335 - Good Connections® manufacturer no.: IC01-20P303 / EAN: 4014619709342 Variants of the series 1 The waterproof Good Connections® Industrial Connectors Series 1 are available in the following variants for M20/M24 cut-outs: - Power (2-, 3-, 4-, 5-pin) - Data (USB and HDMI) - Signal (RJ45, fibre, 5- to 24-pin)
