Industrial Connector S1 - USB 3.2 Gen. 2 cable, plug C™ with click-lock to plug C™, M16, IP65/67, 1m, Good Connections®
Product number:
IC01-16U3101-010
EAN:
4014619881222
Length:
1 m
Width:
0.02 m
Height:
0.03 m
Manufacturer article number:
IC01-16U3101-010
Availability:
20-49 available
Description
Product information "Industrial Connector S1 - USB 3.2 Gen. 2 cable, plug C™ with click-lock to plug C™, M16, IP65/67, 1m, Good Connections®"
The high-quality, precisely fitting and robust connectors from Good Connections® have been developed for the most demanding industrial applications. The use of modern production facilities, standardized processes and high-quality materials ensures consistently high product quality.

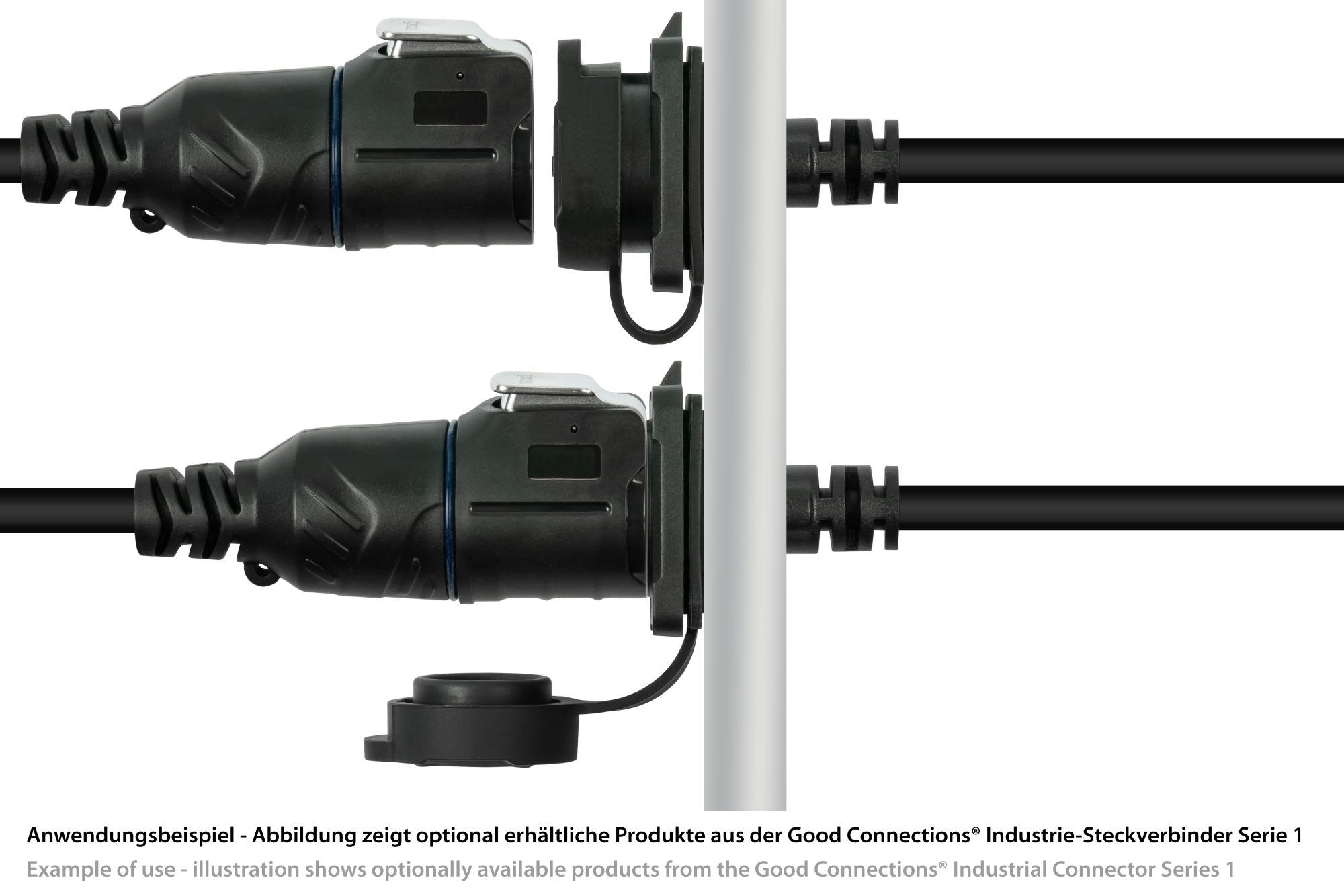

Series 1 - version with "click" lock
The quick and easy-to-use "click" closure, in combination with the solid high-performance plastic housing and gold-plated contacts, reliably ensures a secure and stable data transfer rate of up to 10 Gbit/s and charging power of up to 60 watts at all times.
Areas of application
The industrial connectors from Good Connections® are highly reliable and stable even in the most demanding application scenarios. Wear-resistant, anti-corrosive, waterproof and dustproof - these properties make these connectors all-rounders for use in automation, electronics, energy, communication, lighting and safety technology.
Technical specification:
- Locking technology: "Click"
- Protection class: IP65 / IP67 / IP68
- For M16 cut-outs
- USB connection cable
- USB 3.2 Gen. 2 standard, downward compatible

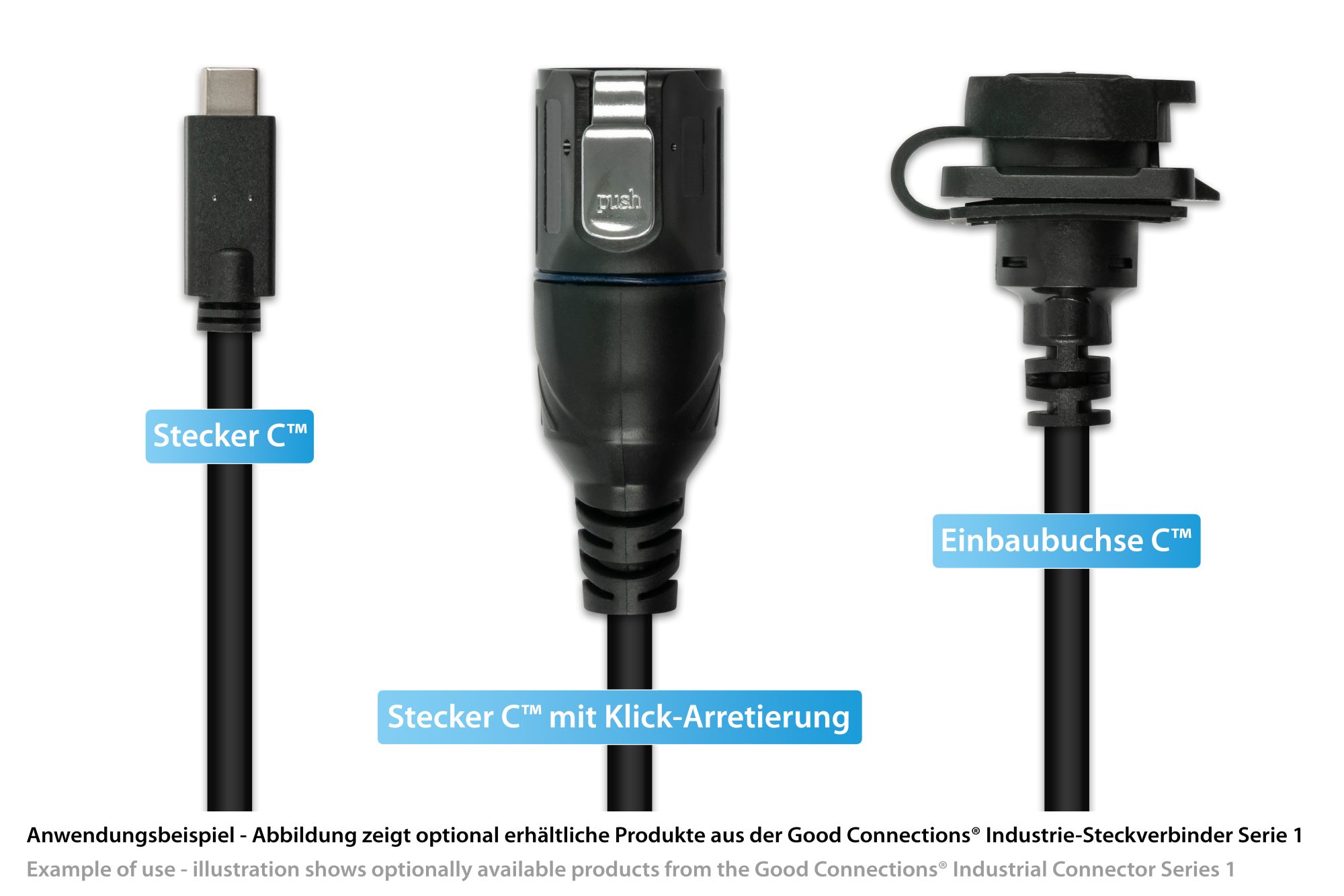

- Connection 1: USB-C™ plug with click lock and e-marker chipset
- Connection 2: USB-C™ plug
- Transfer rate: Super-Speed+, up to 10 Gbit/s data transfer rate
- Charging power: max. 60 watts
- Durability: > 500 mating cycles
- Operating temperature: -40 °C to +85 °C
- Housing material: high-performance plastic
- Contact material: Copper alloy (gold-plated)
- Sealing: Silica gel / silica gel
Length: 1,0 m / 100 cm
Plug-in compatible products:
- Good Connections® Manufacturer No.: IC01-16U3101-005 / EAN: 4014619881215
- Good Connections® Manufacturer No.: IC01-16U3101-010 / EAN: 4014619881222
- Good Connections® Manufacturer No.: IC01-16U3102-005 / EAN: 4014619881239
- Good Connections® Manufacturer No.: IC01-16U3102-010 / EAN: 4014619881246
Variants of series 1
The waterproof Good Connections® Series 1 industrial connectors are available in the following versions for M16/M20/M24 cut-outs:
- Power (2-, 3-, 4-, 5-Pin)
- Daten (USB und HDMI)
- Signal (RJ45, Fiber, 5- bis 24-Pin)
