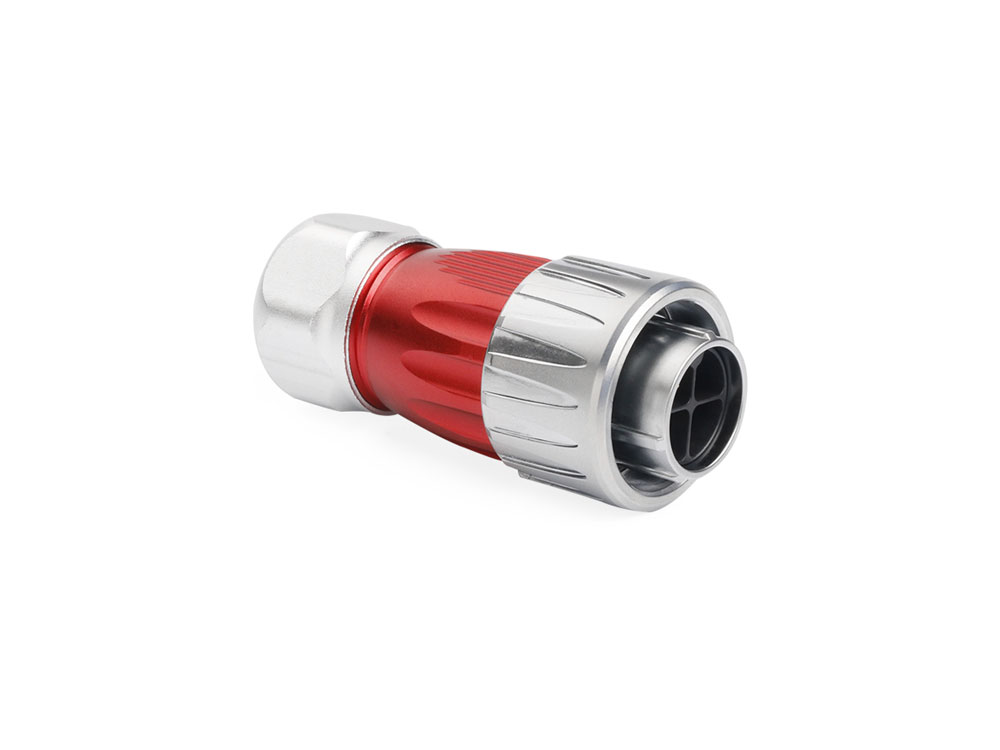

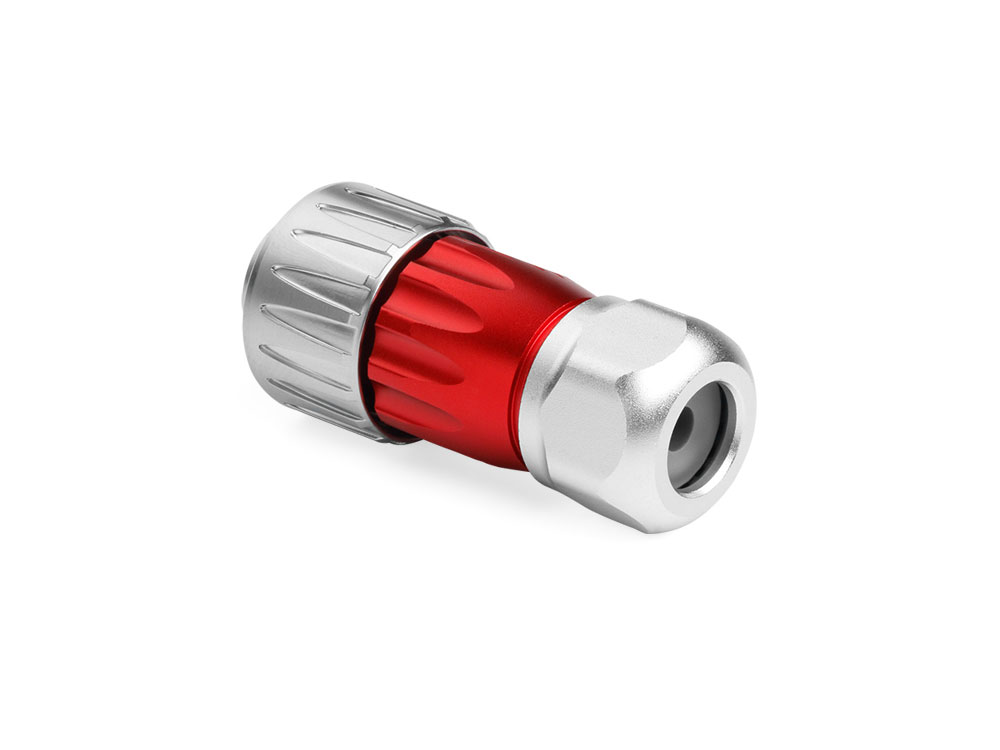

Industrial Connector S3 - Power (4-pin) Plug with cable gland, solder termination, metal, M20, bayonet, IP65/67, Good Connections®

To order this product, please log in here.

Product number: IC03-20P401

EAN: 4014619709878

Length: 0.06 m

Width: 0.03 m

Height: 0.03 m

Manufacturer article number: IC03-20P401

Availability: 10-19 available

Product information "Industrial Connector S3 - Power (4-pin) Plug with cable gland, solder termination, metal, M20, bayonet, IP65/67, Good Connections®"

The high-quality, precision-fit and robust connectors from Good Connections® have been developed for the most demanding industrial applications. By using modern production facilities, standardised processes and high-quality materials, a consistently high processing quality of the products is achieved. Series 3 - Metal version with bayonet catch. The military three-point twist lock (bayonet) closure is designed for use in harsh environments and, in combination with the solid metal housing and gold-plated contacts, reliably ensures secure and stable connection and transmission performance at all times. Application areas Good Connections® Industrial Connectors are highly reliable and stable in even the most demanding application scenarios. Wear-resistant, anti-corrosive, waterproof and dustproof - these properties make these connectors all-rounders for use in automation, electronics, energy, communications, lighting and safety technology. Technical specification: - Locking technology: bayonet - Protection class: IP65 / IP67 - For M20 cut-outs - Power (4-pin) plug with cable gland - Durability: > 500 mating cycles - Operating temperature: -40 °C to +80 °C - Number of contacts: 4 - Solder connection - Housing material: metal with zinc alloy (pearl hard chrome) - Contact material: copper alloy (gold-plated) - Material of other parts: High-performance plastic - Sealing: silica gel / silica gel Plug-in compatible products: - Good Connections® manufacturer no.: IC03-20P401 / EAN: 4014619709878 - Good Connections® manufacturer no.: IC03-20P402 / EAN: 4014619709588 - Good Connections® manufacturer no.: IC03-20P403 / EAN: 4014619709595 Variants of the series 3 The waterproof Good Connections® Industrial Connectors Series 3 are available in the following variants for M20/M24 cut-outs: - Power (2-, 3-, 4-pin) - Data (USB and HDMI) - Signal (RJ45, fibre, 5- to 24-pin)
