Patch Panel Desktop Cat. 6A, 8-port, 0,5 U, STP shielded, toolless opening, deep black (RAL9005), Good Connections®
Product number:
GC-N0118
EAN:
4014619459629
Length:
0.29 m
Width:
0.12 m
Height:
0.06 m
Manufacturer article number:
GC-N0118
Availability:
20-49 available
Description
Product information "Patch Panel Desktop Cat. 6A, 8-port, 0,5 U, STP shielded, toolless opening, deep black (RAL9005), Good Connections®"

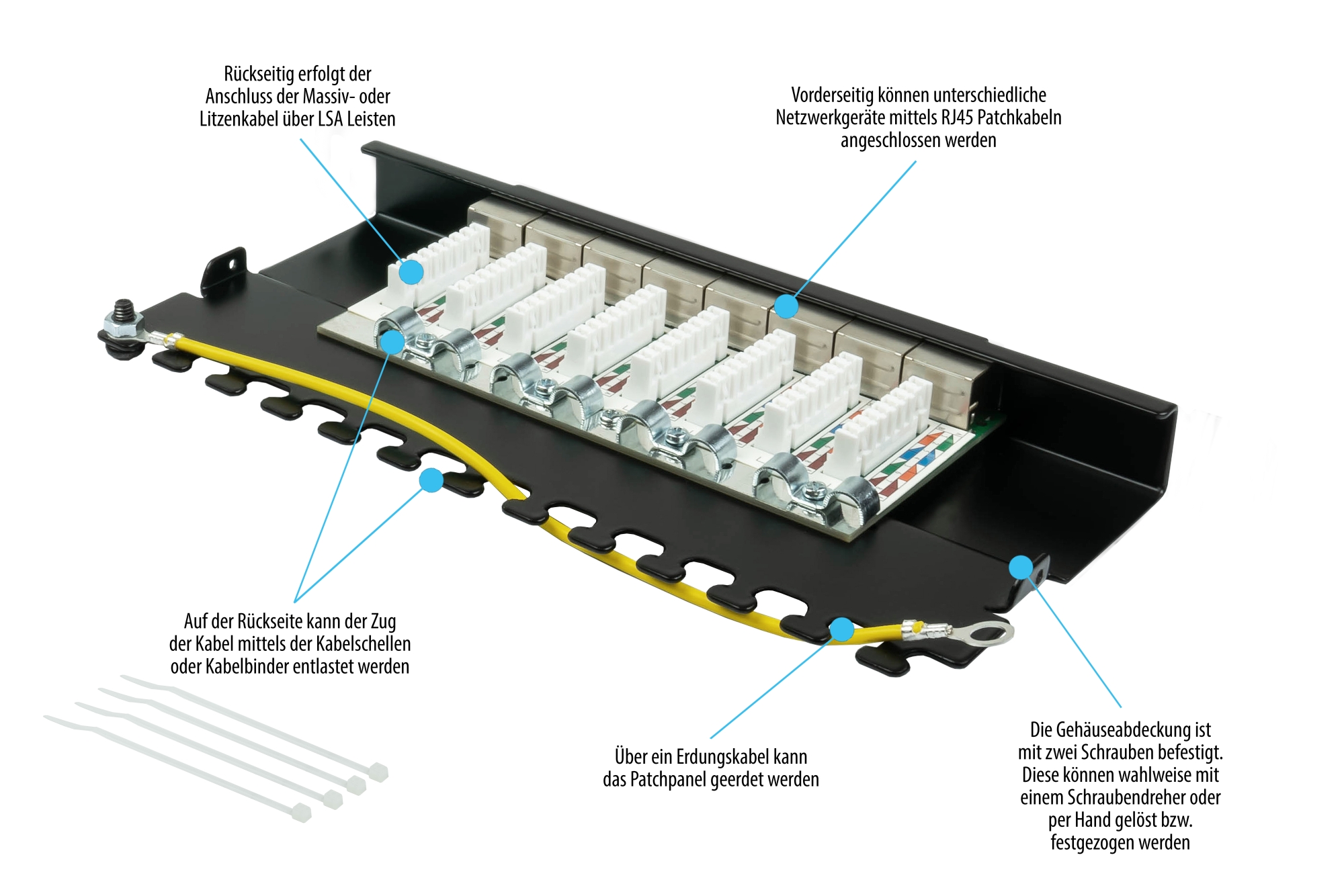

The fully shielded Cat. 6A patch panel from Good Connections® is made of robust 1.5 mm sheet steel and is suitable for Ethernet networks up to 10 Gigabit/s. Different network devices can be connected at the front using RJ45 patch cables. At the rear, solid or stranded cables are connected via LSA strips.

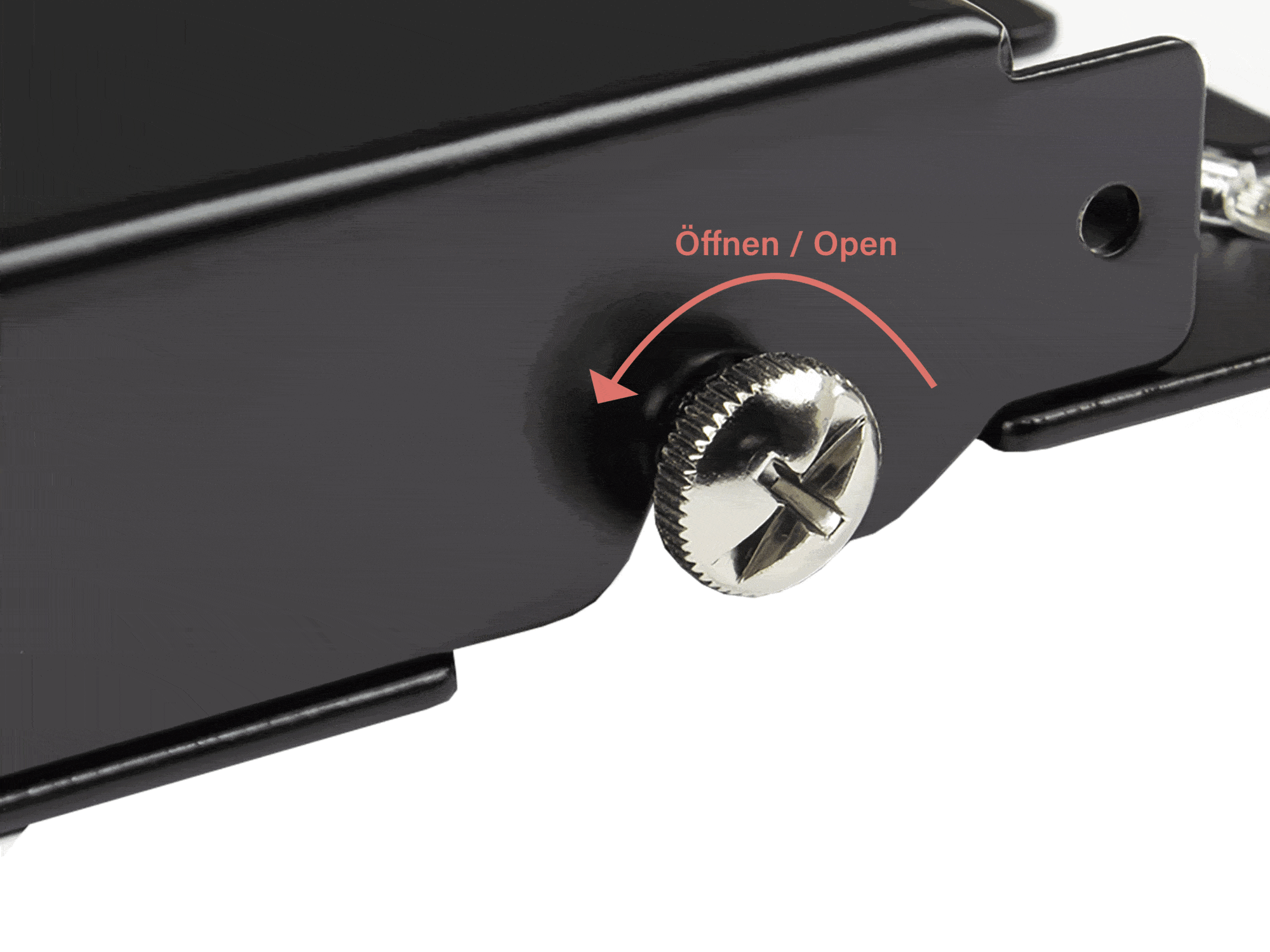

Tool-free opening and closing
The housing cover is fixed with two screws. These can be loosened or tightened either with a screwdriver or by hand.
Technical specification:
- Cat. 6A according to ANSI/TIA/EIA 568 C.2 Standard
- Desktop version with 8 ports
- Suitable for 10 Gigabit/s Ethernet and for transmission frequencies up to 500 MHz
- Complete shielding of RJ45 jacks and LSA strips
- Terminal strips with colour coding according to TIA 568 A/B
- Cable installation via LSA strips
- For solid and stranded cables with cable diameters from 22-26 AWG
- Cable fixing with strain relief
- Housing made of 1.5 mm sheet steel
- Fixing possibility for cable ties
- Central grounding connection
- 0.5 Height units [U]
- Operating temperature range: -20 °C to +60 °C
Colour: deep black (RAL9005)
Dimensions (WxDxH): 212 x 100 x 22 mm
Scope of delivery:
- 1x patch panel incl. grounding cable
- 1x illustrated manual
- 4x cable ties
