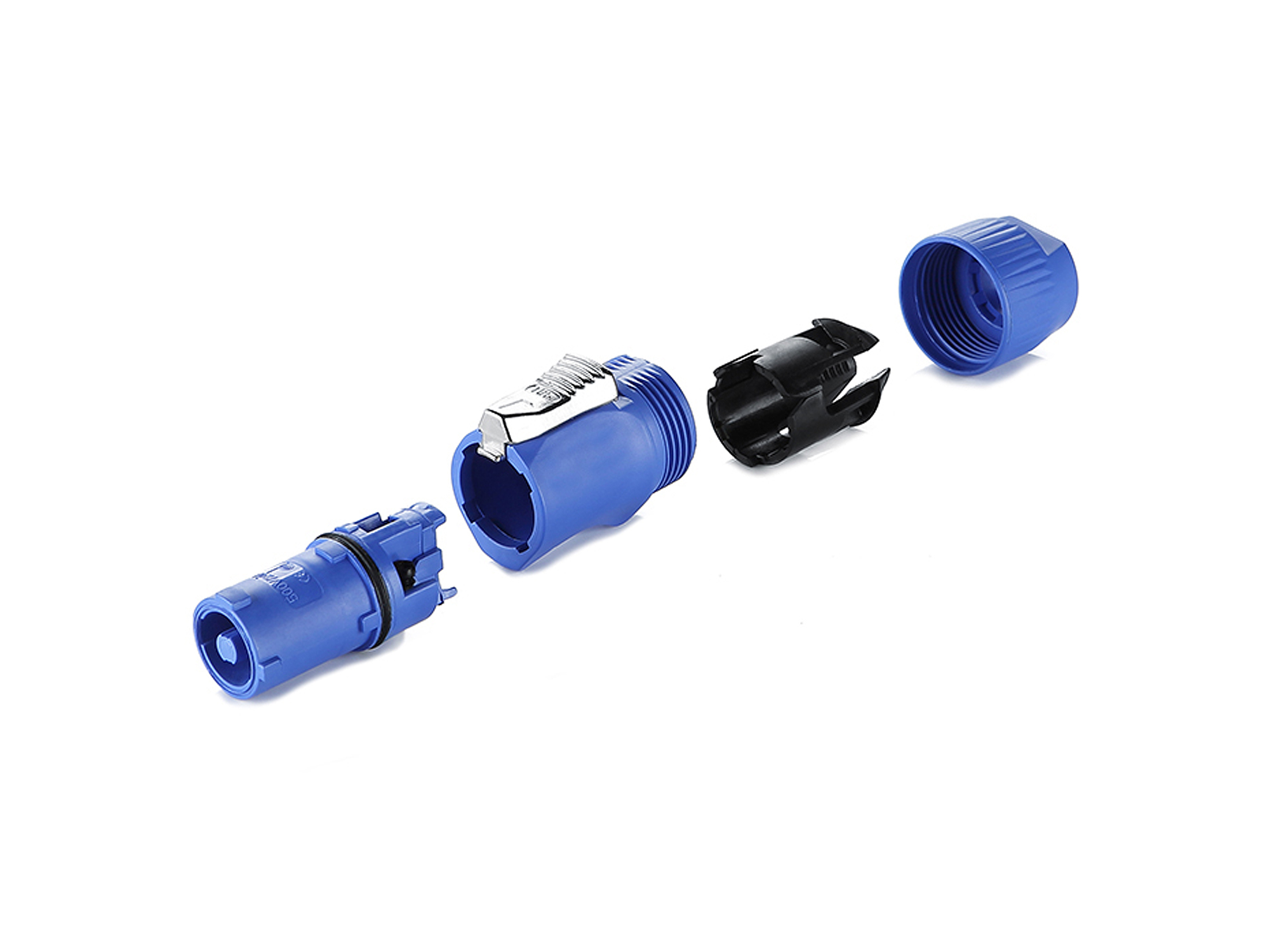

Power connector (Power-In) 3-pin with lock, blue, Good Connections®
Product number:
IC05-P301
EAN:
4014619709717
Manufacturer article number:
IC05-P301
Availability:
50-99 available
Description
Product information "Power connector (Power-In) 3-pin with lock, blue, Good Connections®"
The 3-pin power connector (Power-In) from Good Connections® is used wherever a very robust and lockable power supply solution is required
The product is compatible with standard PowerCON sockets.
Technical specification:
- Locking technology: ‘twist-click’
- Protection class: IP65
- Power (3-pin) plug with twist-click lock
- Suitable conductor types: 14 ~ 12 AWG
- Suitable cable outer diameter: 8.0 - 13.5 mm
- Max. Rated current: 20 A
- Operating voltage: 250 V
- Dielectric strength: 2500 V
- Durability: > 500 mating cycles
- Operating temperature: -40 °C to +80 °C
- Number of contacts: 3
- Screw connection
- Housing material: High-performance plastic
- Contact material: Copper alloy
- Sealing: silica gel / silica gel
Plug-in compatible products:
- Good Connections® Manufacturer-No.: IC05-P301 / EAN: 4014619709717
- Good Connections® Manufacturer-No.: IC05-P302 / EAN: 4014619709724
Note:
The plug must not be plugged in or unplugged under load.
