Power connector panel socket (Power-In) 3-pin with lock, blue, Good Connections®

Skip image gallery
Power connector panel socket (Power-In) 3-pin with lock, blue, Good Connections®
Power connector panel socket (Power-In) 3-pin with lock, blue, Good Connections®
Power connector panel socket (Power-In) 3-pin with lock, blue, Good Connections®
Power connector panel socket (Power-In) 3-pin with lock, blue, Good Connections®
Power connector panel socket (Power-In) 3-pin with lock, blue, Good Connections®
Power connector panel socket (Power-In) 3-pin with lock, blue, Good Connections®
Power connector panel socket (Power-In) 3-pin with lock, blue, Good Connections®
Power connector panel socket (Power-In) 3-pin with lock, blue, Good Connections®
Power connector panel socket (Power-In) 3-pin with lock, blue, Good Connections®
Power connector panel socket (Power-In) 3-pin with lock, blue, Good Connections®
Power connector panel socket (Power-In) 3-pin with lock, blue, Good Connections®
Power connector panel socket (Power-In) 3-pin with lock, blue, Good Connections®
Power connector panel socket (Power-In) 3-pin with lock, blue, Good Connections®
Power connector panel socket (Power-In) 3-pin with lock, blue, Good Connections®
Product number: IC05-P302
EAN: 4014619709724
Manufacturer article number: IC05-P302
Availability: 50-99 available
Description

Product information "Power connector panel socket (Power-In) 3-pin with lock, blue, Good Connections®"

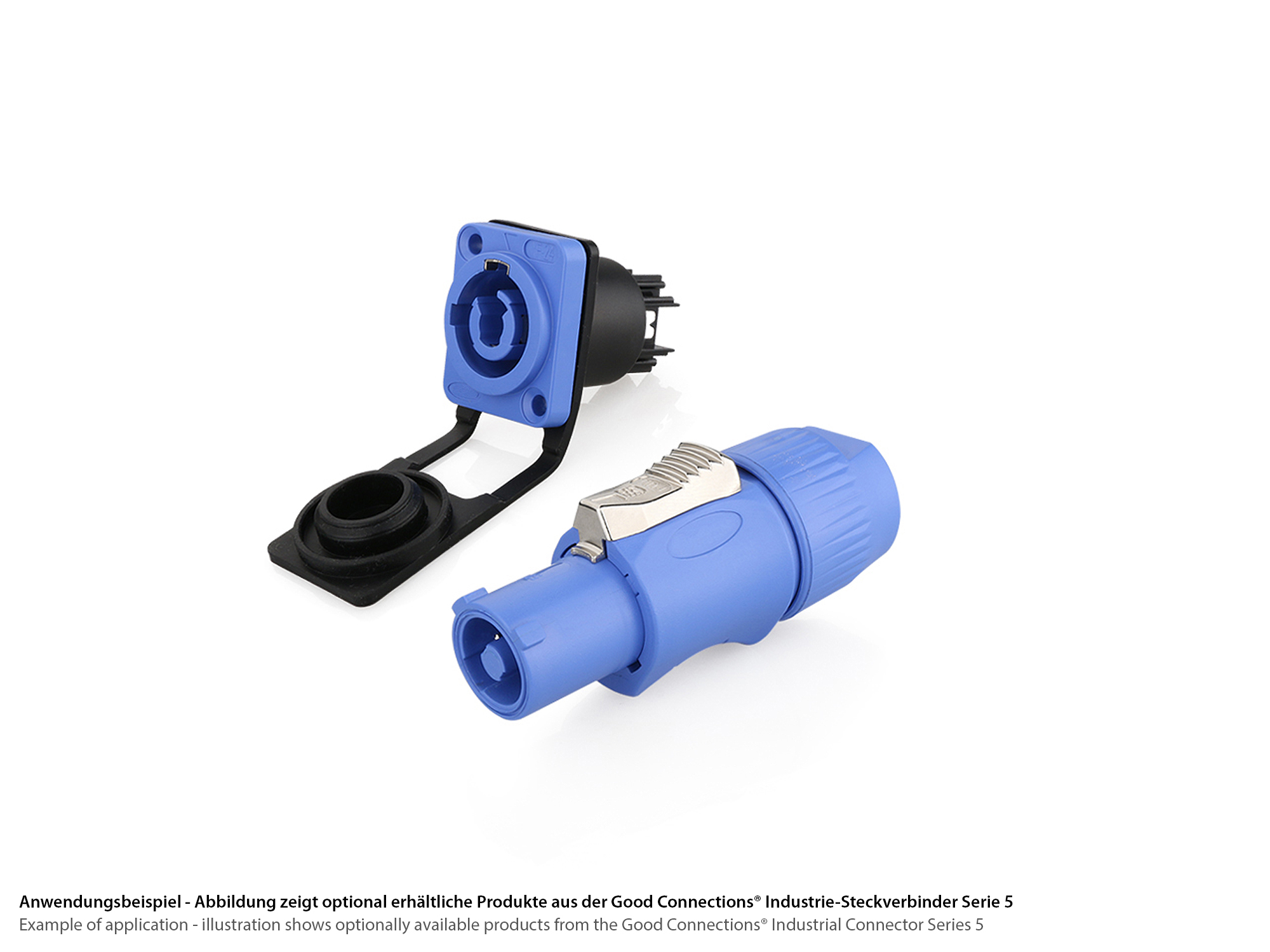

The 3-pin power plug socket (Power-In) from Good Connections® is used wherever a very robust and lockable power supply solution is required The product is compatible with standard PowerCON plugs. Technical specification: - Locking technology: ‘twist-click’ - Protection class: IP65 - For M24 cut-outs - Power (3-pin) installation socket with twist-click lock - Max. Rated current: 20 A - Operating voltage: 250 V - Dielectric strength: 2500 V - Durability: > 500 mating cycles - Operating temperature: -40 °C to +80 °C - Number of contacts: 3 - Plug-in connection - Housing material: High-performance plastic - Contact material: Copper alloy - Sealing: silica gel / silica gel Plug-in compatible products: - Good Connections® Manufacturer-No.: IC05-P301 / EAN: 4014619709717 - Good Connections® Manufacturer-No.: IC05-P302 / EAN: 4014619709724 Note: The plug must not be plugged in or unplugged under load.
