RJ45 plug Cat. 6A, tool-free / field-terminable, STP shielded, metal, 5 directions, Good Connections®
Product number:
GC-N0165
EAN:
4014619842476
Manufacturer article number:
GC-N0165
Availability:
100-999 available
Description
Product information "RJ45 plug Cat. 6A, tool-free / field-terminable, STP shielded, metal, 5 directions, Good Connections®"
The field-terminable Cat. 6A RJ45 network plug from Good Connections® is suitable for tool-free and quick assembly on network cables and is up to 10-gigabit-capable. The RJ45 plug can be easily and securely mounted with the threading aid and is suitable for cable diameters from 6.5 mm to 8.5 mm. For greater tensile strength and safety, the RJ45 plug is equipped with a strain relief.

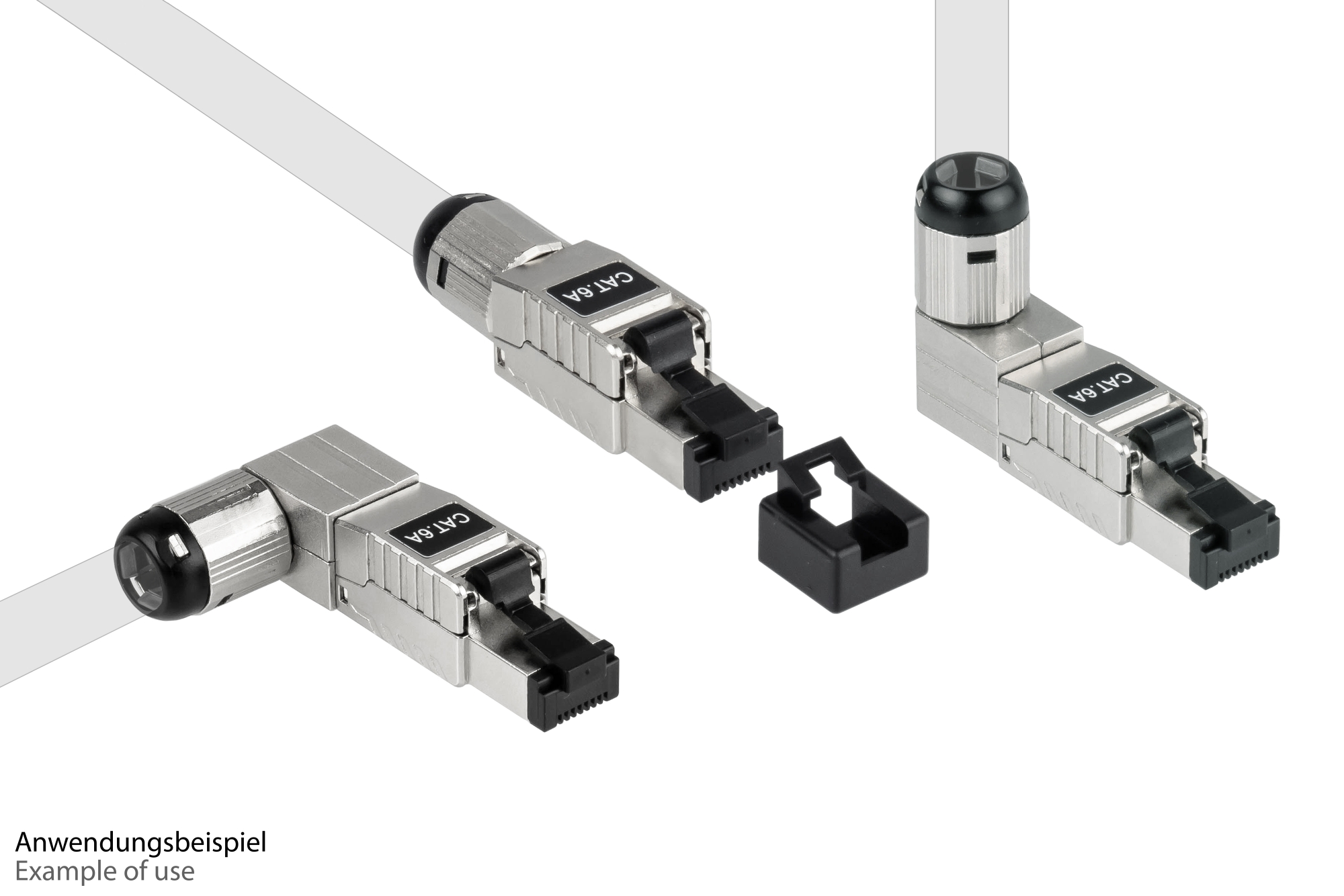

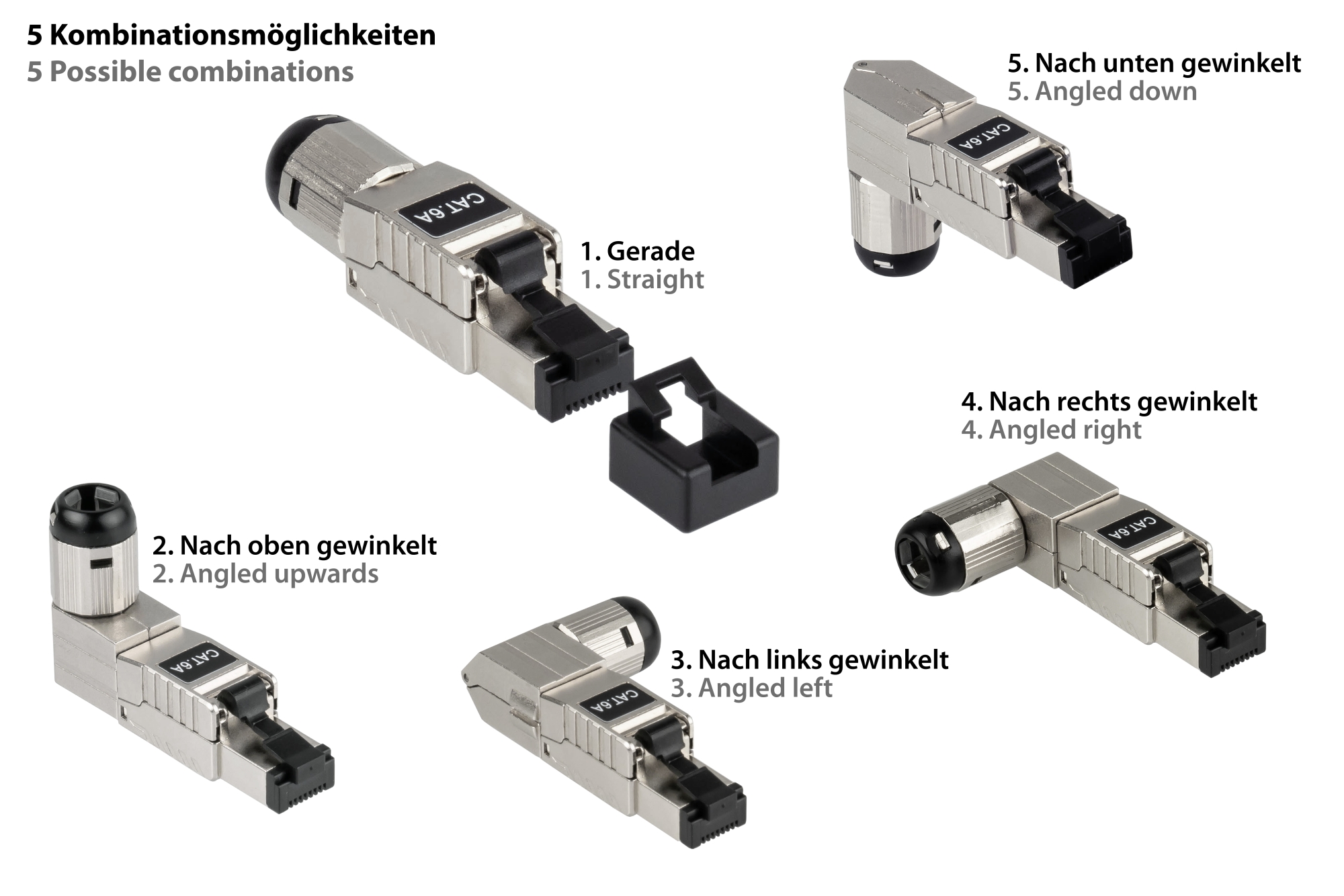

With this one network connector, you are equipped for all applications during on-site installation. By default, the cable can be led out directly to the rear. By using the supplied angle cap, you get an angled network connector - ideal for confined spaces. The angle cap allows you to lead the cable out of the plug on the left, right, top or bottom. In total, you can use this network connector in five different orientations.
Technical specification:
- Tool-less / field attachable RJ45 connector
- Cat. 6A specification, 500 MHz
- Contacts: phosphor bronze alloy, gold plated
- Shielded (STP) zinc die-cast housing
- Suitable for solid conductors (laying cable) AWG 26/1 bis AWG 22/1
- Suitable for stranded conductors (patch cables) AWG 27/7 bis AWG 22/7
- Suitable cable diameters: 6,5 mm – 8,5 mm
- Strain relief
- Power over Ethernet suitable (PoE)
- Operating temperature: - 40 °C bis +70 °C
Scope of delivery:
- 1x Shielded RJ45 plug
- 1x Threading aid
- 1x Copper foil
- 1x Angled piece
- 1x Dust protection cap
- 1x Strain relief
- 1x Assembly instruction
