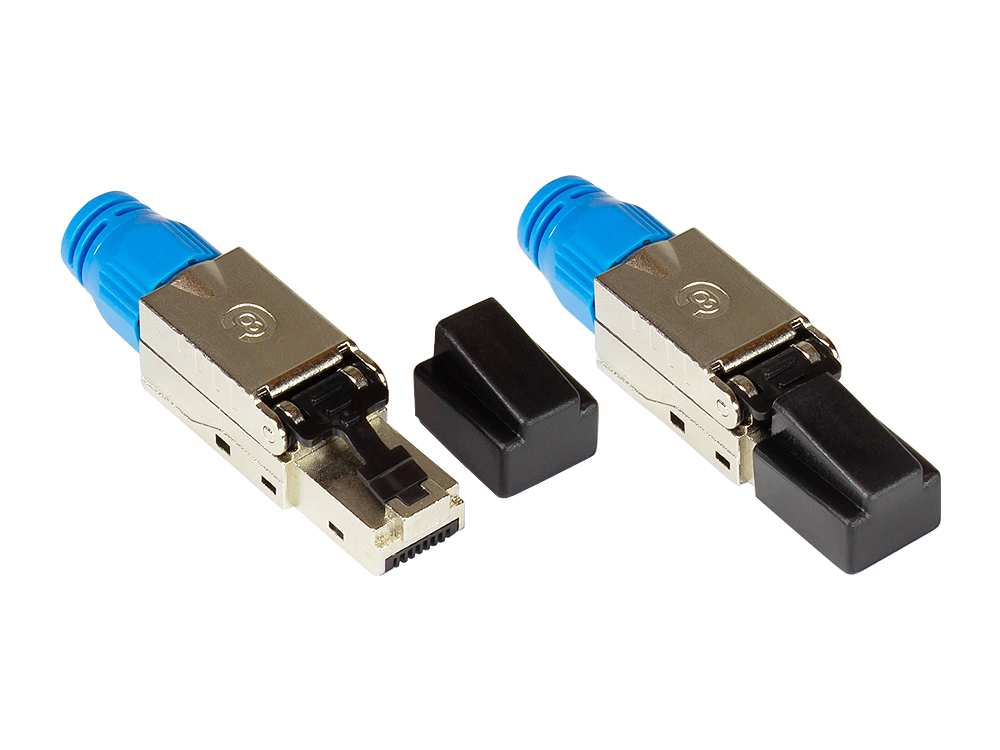

RJ45 plug Cat. 8.1, toolless / field attachable, STP shielded, metal, Good Connections®
Product number:
GC-N0149
EAN:
4014619709960
Length:
0.06 m
Width:
0.01 m
Height:
0.01 m
Manufacturer article number:
GC-N0149
Availability:
100-999 available
Description
Product information "RJ45 plug Cat. 8.1, toolless / field attachable, STP shielded, metal, Good Connections®"
The field-terminable Cat. 8.1 RJ45 network connector from Good Connections® is suitable for tool-less and fast installation on network cables and is up to 40 gigabit capable. The RJ45 plug can be easily and securely mounted with the threading aid and is suitable for cable diameters from 6 mm to 9.5 mm. The RJ45 plug is equipped with a strain relief for higher tensile strength and safety.
Technical specification:
- Tool-less / field attachable RJ45 connector
- Cat. 8.1 specification, 2000 MHz
- Contacts: phosphor bronze alloy, gold plated
- Shielded (STP) zinc die-cast housing
- Suitable for solid conductors (laying cable) AWG 26/1 to AWG 22/1
- Wire diameter solid conductor: from 0,40 mm to 0,76 mm
- Suitable for stranded conductors (patch cables) AWG 27/7 to AWG 22/7
- Wire diameter stranded conductors from 0.46 mm to 0.76 mm
- Suitable cable diameters: 6 mm - 9.5 mm
- Adjustable strain relief
- Power over Ethernet suitable (PoE, PoE plus, UPoE)
- Operating temperature: - 40 °C to +60 °C
Scope of delivery:
- 1x Shielded RJ45 plug
- 1x threading aid
- 1x dust protection cap
- 1x strain relief (two-piece)
- 1x assembly instruction
