Remote cable tester for RJ45, RJ11, UTP/STP/BNC/USB, Good Connections®
Product number:
GC-N0097
EAN:
4014619171194
Length:
0.23 m
Width:
0.11 m
Height:
0.05 m
Manufacturer article number:
GC-N0097
Availability:
20-49 available
Description
Product information "Remote cable tester for RJ45, RJ11, UTP/STP/BNC/USB, Good Connections®"
The remote cable tester by Good Connections® is a handy wiring tester with four different testing ports (RJ11 / RJ45 / USB / BNC). It checks lines for circut, short circuit, wire reversal and cable defect.
Easy handling
plug in the cable, press the button, read the result. The device automatically shuts itself off, to save energy.
Practical REMOTE-function
the tester consists of a master- and a remote unit. Cable lines which have already been installed / laid can be tested as well, due to the removable remote unit.
Technical specifications:

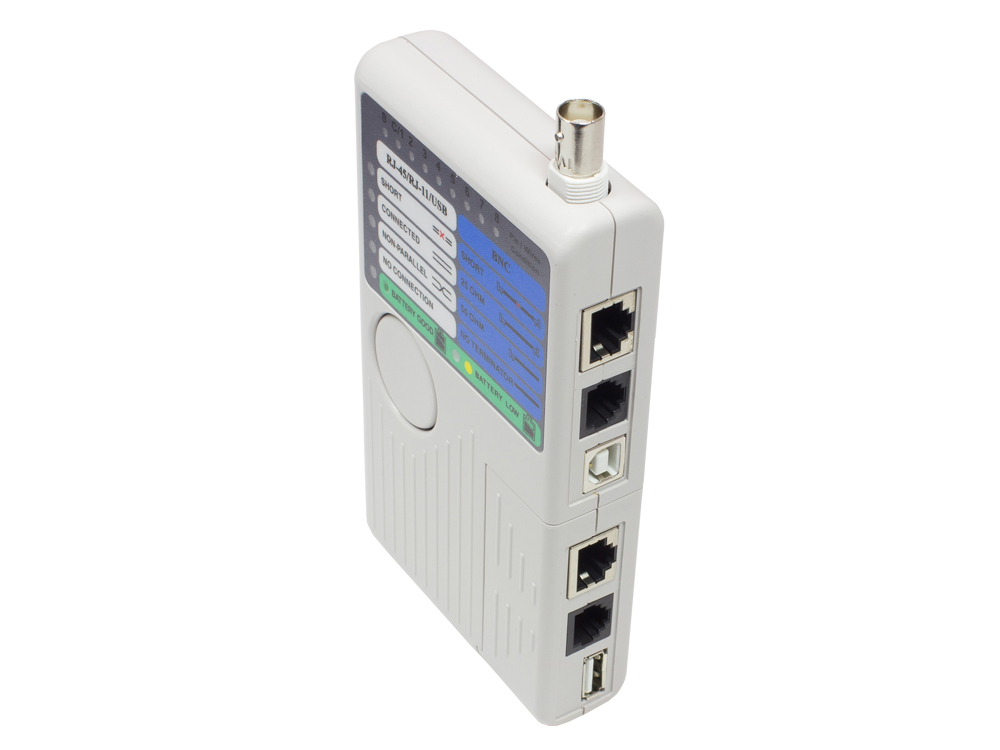

- Ports (master unit): RJ11 / RJ45 / BNC / USB B socket
- Ports (remote unit): RJ11 / RJ45 / USB A socket
- BNC terminating resistor to check BNC cables

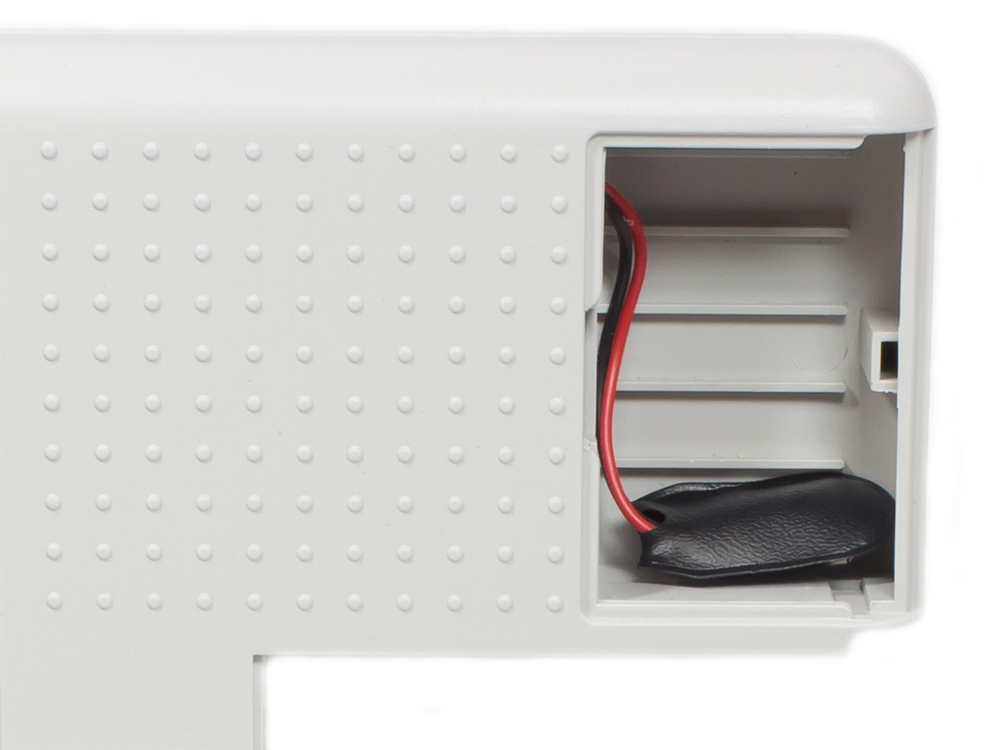

- Power supply via 9V monobloc battery (NOT included in the scope of delivery)
- Higher report of tests results due to Beeper
- Black protection bag included in the scope of delivery
- Battery status display

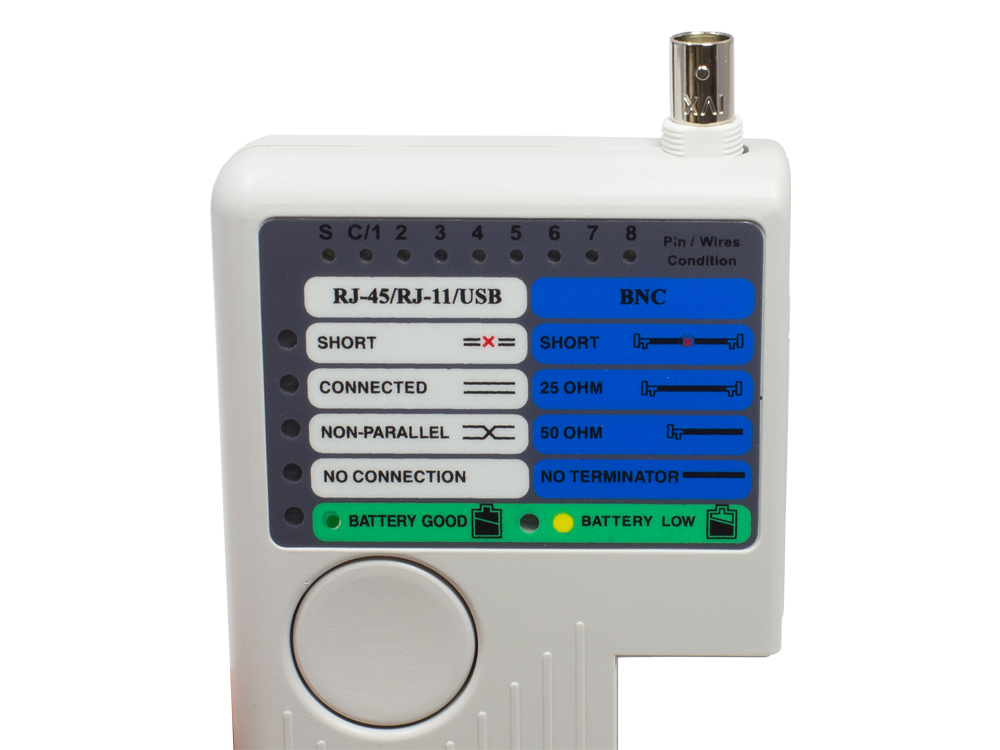

Different LED-displays for detailled information:
-„SHORT“-LED: short circuit
-„CONNECTED“-LED: Pins 1:1 connected (for BNC: 25 Ohm)
-„NO-PARALLEL“-LED: mixed up conductors (for BNC: 50 Ohm)
-„NO CONNECTION“-LED: not connected / no passageway (for BNC: no terminator)
-“S"-LED: shielding connected correctly
-“C/1-8"-LED: LEDs light up, when the inner connector is connected properly
Length: 14,3 cm
Width: 8,5 cm
Height: 2,5 cm
Weight: 0,175 kg
