SAT antenna cable SmartFLEX, F-plug on both sides, gold-plated, fourfold shielded, shielding dimension 120dB, white, 7,5m, Good Connections®
Product number:
GC-M2086
EAN:
4014619738311
Length:
7.5 m
Width:
0.01 m
Height:
0.01 m
Manufacturer article number:
GC-M2086
Availability:
20-49 available
Description
Product information "SAT antenna cable SmartFLEX, F-plug on both sides, gold-plated, fourfold shielded, shielding dimension 120dB, white, 7,5m, Good Connections®"

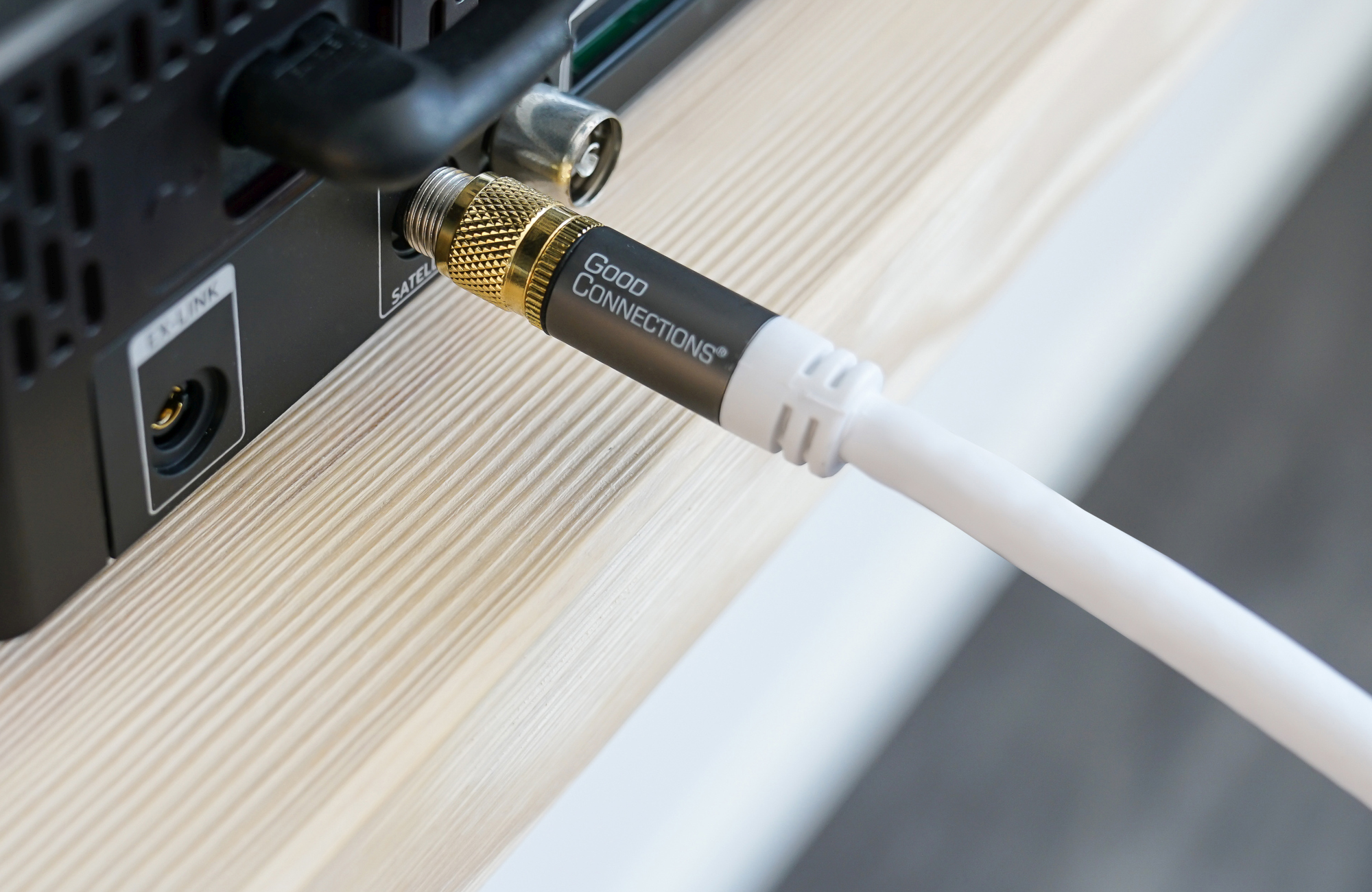

The extremely flexible SmartFLEX SAT antenna cable by Good Connections® is suitable for the digital as well as analog reception of the SAT cable network (DVB-S2, DVB-S, DVB-T2, DVB-T, DVB-C). Easily connect your TV or receiver to the LNB of the satellite system, even in areas which are difficult to access.
SmartFLEX technology

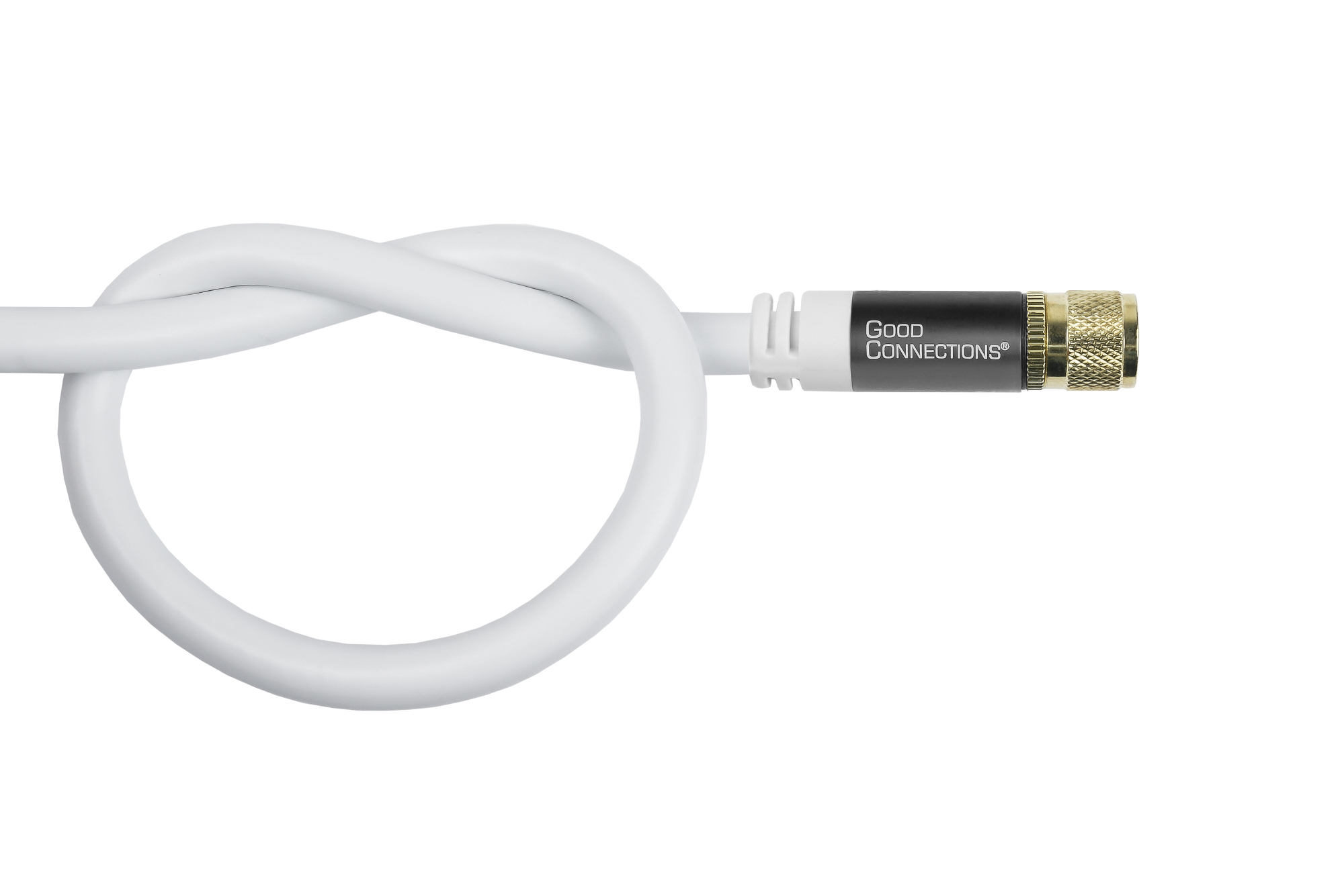

The SmartFLEX technology is, contrary to the conventional rather stiff antenna cables, extremely flexible. The special composition of the PVC cable-coating enables very small bending radii and therefore facilitates the installation or the cable laying in your network. In addition to the higher flexibility the SmartFLEX cables are characterized by their mechanical strength and long durability.
High-quality cable structure
The shielded conductor consists by 99,99% of oxygen free copper (OFC). This enables an increased signal transmission and a higher breaking strength of the cable.
Shielded full metal plugs
To ensure a loss-free signal transmission, the plugs are 100% shielded and equipped with gold plated copper contacts. The massive, manufactured for a precise fit, plugs provide for a secure and optimal connection.
Fourfold shielding 120 dB / 75 Ohm
The fourfold shielding of the cable with a shielding value of 120 dB / 75 Ohm ensures a consistently high signal transmission.

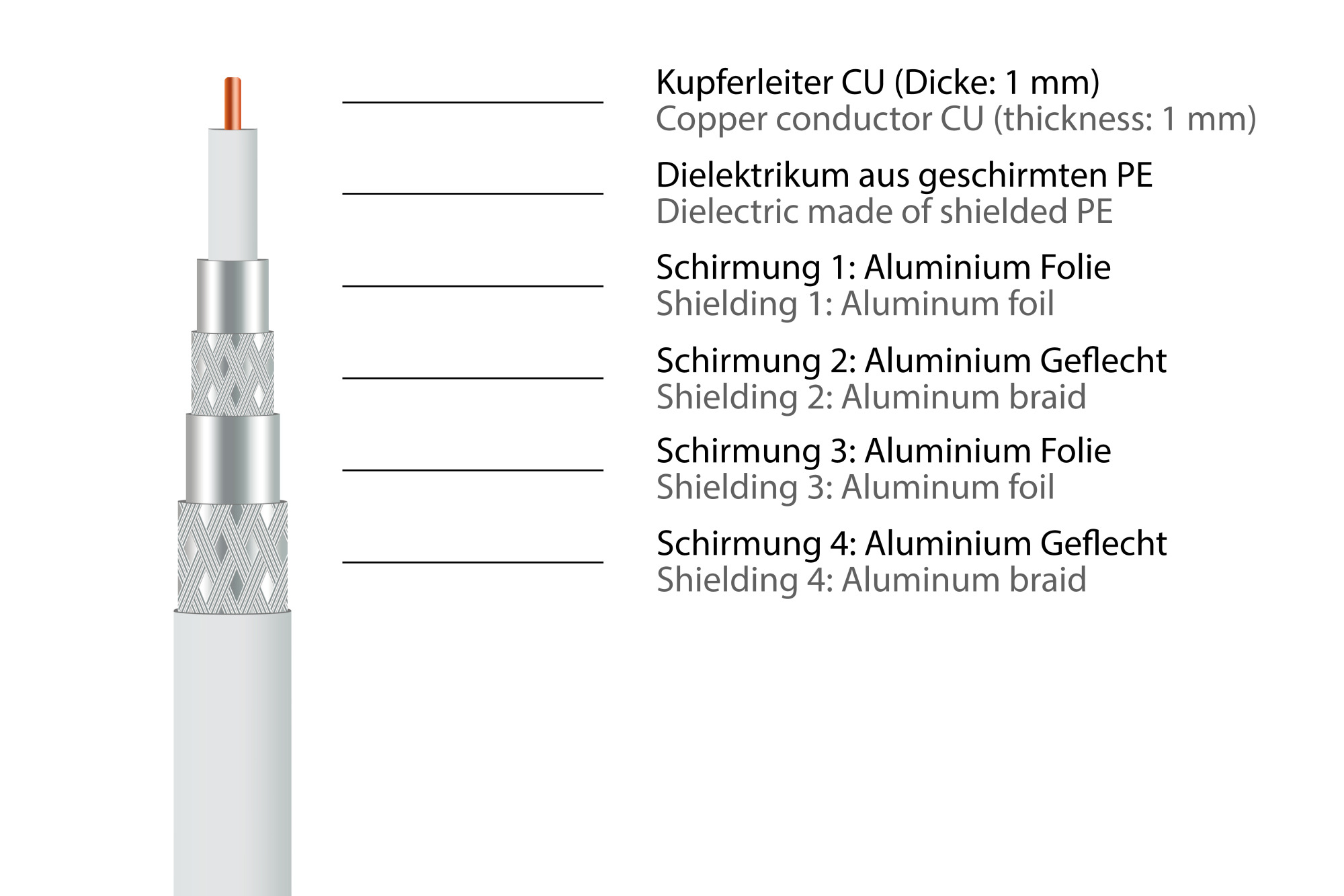

Technical specification:
- Fully shielded plugs: F-plug to F-plug
- Gold plated copper contacts
- Conductor material (thickness: 1 mm) and contacts made of 99,99% oxygen-free copper (OFC)
- fourfold shielded RG6 Coaxial-cable
- Shielding: fourfold, 120 dB / 75 Ohm
- Shielding 1 and 3: aluminum foil
- Shielding 2 and 4: aluminum braid
- Dielectric made from foamed PE
- Cable-coating material: SmartFLEX PVC
- Cable-coating diameter: 8 mm +/- 0,2 mm
Color: White
Length: 7,5 m
